GASOLINE ENGINE OIL
ULTRAHYBRID SYNTHETICDESCRIPTION:
ULTRALUBE ULTRAHYBRID SYNTHETIC is a high performance lubricant using synthetic technology, specially developed for Gasoline Hybrid car engines, meeting and complying with the requirements of the latest direct injection engines and conventional engines as well. Hybrid’s low viscosity and tenacious film characteristics provides the necessary performance needed for Hybrid engine which is subjected to frequent on-off start-ups and exerts excessive wear on the engine. Hybrid protects against this potential excessive wear and extends engine’s life.
APPLICATION:
ULTRALUBE ULTRAHYBRID SYNTHETIC Recommended for all Hybrid Gasoline engines in cars and light vehicles. All turbocharged and multi-valved engines. Suitable for most severe operating conditions, on highways, dense city trafic & in extreme weather conditions. Suitable & exceeds the performance requirements of most European, Japanese and American car manufacturers.
BENEFITS:
.Ensuring sustainable high performance, thus meeting the needs of the engines in term of extended and better oil drain intervals.
.Guaranteeing high & constant quality by excellent detergent properties giving greater engine cleanliness for enhanced performance.
.High Viscosity Index resulting in stable viscosity during operation and super fast pump-ability to all internal engine parts.
.Fully miscible with other engine oils
.Superior anti-wear properties protecting the engine’s most sensitive parts.
.Good anti-wear properties
PERFORMANCE LEVEL:
API..................... SN/ILSAC GF-5
Daimler Chrysler…...MB 229.31
Volkswagen ...... 502.00/505.00
BMW…………………... Long-life-04
HONDA HYUNDAI
NISSAN KIA
TOYOTA SUZUKI
Product characteristics:
Products | Units | Value | Test Method | |||
SAE Grade | @ 15 °C | 5W-20 | ||||
Specific Gravity | @ 15 °C | - | 0.8300 | ASTM D-4052 | ||
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
43.500 8.004 |
ASTM D-445 ASTM D-445 |
||
Viscosity Index | - | 159 | ASTM D-2270 | |||
Flash Point, COC | °C | 220 | ASTM D-92 | |||
Pour Point | °C | -42 | ASTM D-97 | |||
Color | - | L2.0 | ASTM D-1500 | |||
Product Code | - | 1170 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ALPHA S5 is a high performance lubricant using fully synthetic technology, specially developed for Gasoline and Diesel car engines, meeting and complying with the requirements of the latest direct injection engines and conventional engines as well
APPLICATION:
ULTRALUBE ALPHA S5 Recommended for all Gasoline and Diesel engines in cars and light industrial vehicles. All turbocharged and multi-valved engines. Suitable for most severe operating conditions, on highways, dense city traffic & in extreme weather conditions. Suitable & exceeds the performance requirements of most European, Japanese and American car manufacturers,
BENEFITS:
.Ensuring sustainable high performance, thus meeting the needs of the engines in term of extended and better oil drain intervals; consequently, doubling the oil drain mileage, .Guaranteeing high & constant quality by excellent detergent properties giving greater engine cleanliness for enhanced performance. .High Viscosity Index resulting in stable viscosity during operation .Fully miscible with other engine oils. .Less oil top-up .Superior antiwear properties protecting the engine's most sensitive parts. .Easy cold start and ideal lubrication at elevated temperature, ensures low oil consumption and cold start protection against wear. .Good anti-wear propertiesPerformance level:
API SNilLSAC GF-5
Daimler Chrysler MB 229.31
Volkswagen 502.001505.00
BMW ......Long-life-04
HONDA HYUNDAI
NISSAN KIA
TOYOTA SUZUKI
Product characteristics:
Units | Value | Test Method | |||
SAE Grade | 5W-30 | 10W-30 | |||
Specific Gravity le | 15°C | 0.851 | 0.852 | ASTM D-4052 | |
Viscosity | @ 40 °C @ 100 °C |
mm2/fs mm2/fs |
71.9 11.9 |
72.22 11.84 |
ASTM D-445 ASTM D-445 |
Viscosity Index | 162 | 160 | ASTM D-2270 | ||
Flash Point, COC | 222 | 226 | ASTM D-92 | ||
Pour Point | QC | -39 | -36 | ASTM D-97 | |
Base Number | mg 1(01-lig | L2.0 | 7.0 | 7.0 | ASTM D-2896 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ALPHA S4 is a high performance lubricant using fully synthetic technology, specially developed for Gasoline and Diesel car engines, meeting and complying with the requirements of the latest direct injection engines and conventional engines as well.
APPLICATION:
ULTRALUBE GEAR OIL SeriesRecommended for all Gasoline and Diesel engines in cars and light industrial vehicles. All turbocharged and multi-valves engines. Suitable for most severe operating conditions, on highways, dense city traffic & in extreme weather conditions. Suitable & exceeds the performance requirements of most European, Japanese and American car manufacturers.
BENEFITS:
.• Ensuring sustainable high performance, thus meeting the needs of the engines in term of extended and better oil drain intervals; consequently, doubling the oil drain mileage.
.Guaranteeing high & constant quality by excellent detergent properties giving greater engine cleanliness.
.Good anti-wear properties/p>
Performance level:
API SN/ILSAC GF-4
Daimler Chrysler MB 229.31
Volkswagen 502.00/505.00
BMW Long-life-04
HONDA HYUNDAI
NISSAN KIA
TOYOTA SUZUKI
Product characteristics:
Products | Units | Value | Test Method | |||
SAE Grade | @ 15 °C | 5W-40 | 10W-40 | 15W-40 | - | |
Specific Gravity | @ 15 °C | 0.853 | 0.859 | 0.866 | ASTM D-4052 | |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
83.07 13.6 |
98.7 14.2 |
102.3 14.42 |
ASTM D-445 ASTM D-445 |
Viscosity Index | 168 | 147 | 145 | ASTM D-2270 | ||
Flash Point, COC | °C | 220 | 228 | 228 | ASTM D-92 | |
Pour Point | °C | -40 | -33 | -30 | ASTM D-97 | |
Base Number | mg KOH/g | 8.1 | 7.0 | 7.0 | ASTM D-2896 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:

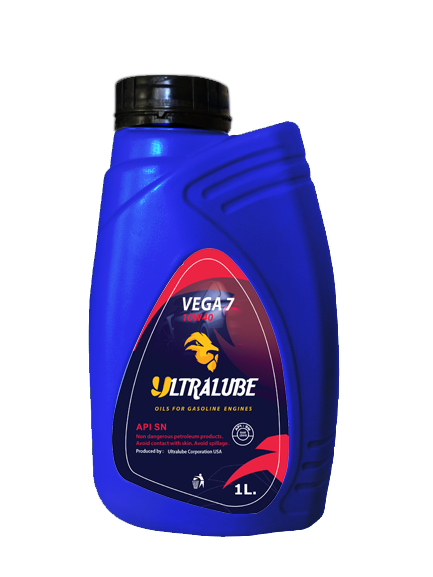

ULTRALUBE VEGA 7 new generation of automotive oils based on revolutionary concepts meeting the performance level required by today's gasoline engines. ULTRALUBE VEGA 7 is blended with the most advanced additive package, which enables it to give exceptional performance under most severe operating conditions. It provides effective protection against oxidation, wear and corrosion under high temperature operations and remains a stable multigrade. ULTRALUBE VEGA 7 provides good cold starting and high resistance to sludge, low volatility characteristics, low oil consumption and is fully compatible with the catalytic converters and exhaust emission control equipment.
APPLICATION:
ULTRALUBE VEGA 7 is recommended for gasoline and diesel engine passenger and commercial vehicles of every make and type, turbo charged or naturally aspirated, which require API SN quality oil. It can also be used for engines where API Service Category SJ and earlier categories are recommended. It exceeds the performance requirements of most European, Korean, Japanese and American car manufacturers.
BENEFITS:
.Excellent engine protection.
.Eliminates seasonal oil changes.
.Maintains a high order of engine cleanliness.
.Better control of deposit formation.
.Better oxidation stability at high temperatures.
.Excellent shear stability, maintains viscosity grade.
.Protects against rust, wear and sludge formation.
.Compatible with catalytic converters.
.uitable for mixed fleet operationS
Product characteristics:
Products | Units | Value | Test Method | ||||
SAE Grade | 10W-30 | 15W-40 | 20W-50 | 10W-40 | - | ||
Specific Gravity | @ 15 °C | - | 0.884 | 0.887 | 0.877 | 0.894 | ASTM D-452 |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
79.0 11.8 |
109.0 15.0 |
169.0 19.20 |
13.4 15.0 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 130 | 140 | 143 | 152 | ASTM D-2270 | |
Flash Point , COC | °C | 220 | 240 | 218 | ASTM D-92 | ||
Pour Point | °C | -24 | -27 | -27 | -30 | ASTM D-97 | |
Base Number | mg KOH/g | 7.6 | 7.6 | 7.6 | 7.6 | ASTM D-2896 | |
Sulphated Ash | % wt. | 0.99 | 0.99 | 0.99 | 0.99 | ASTM D-874 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.

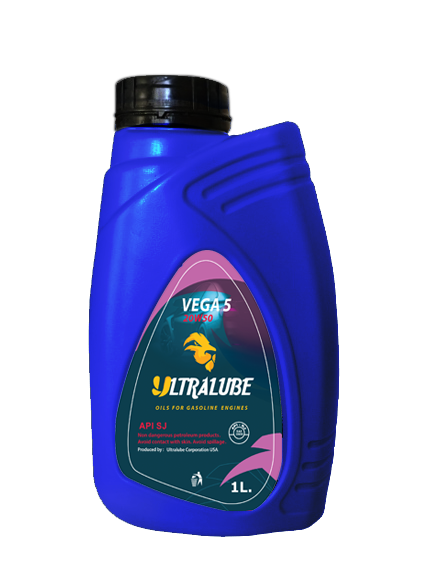

DESCRIPTION:
ULTRALUBE VEGA 5 is a high quality multi-grade lubricant for passenger cars and commercial vehicles. It is formulated from selected base oils and special chemical additives which provide oxidation stability, and high degree of detergent and dispersant characteristics.
APPLICATION:
ULTRALUBE VEGA 5 motor oil is recommended for supercharged or naturally aspirated gasoline engines, in passenger cars and commercial vehicles requiring the manufacturer's recommended API Service Category SJ. It can also be used where lower API level oils are recommended.
BENEFITS:
.Can be used for all seasons.
.Excellent shear stability.
.Minimizes deposit formation at high temperatures.
.Protects against rust, wear and sludge formation.
.Compatible with catalytic converters.
.Suitable for mixed fleet operation.
PRODUCT CHARACTERISTICS:
Products | Units | Value | Test Method | |||
SAE Grade | - | 20W50 | Test Method | |||
Specific Gravity | @ 15 °C | - | 0.893 | ASTM D-4052 | ||
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
175.0
19.1 |
ASTM D-445 ASTM D-445 |
||
Viscosity Index | - | 124 | ASTM D-2270 | |||
Flash Point, COC | °C | 240 | ASTM D-92 | |||
Pour Point | °C | -27 | ASTM D-97 | |||
Base Number | mg KOH/g | 6.10 | ASTM D-2896 | |||
Sulphated Ash | % wt. | 0.79 | ASTM D-874 | |||
Product Code | - | 1280 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:

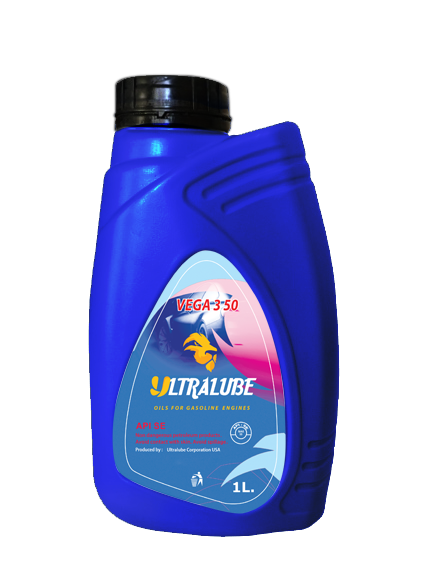

ULTRALUBE VEGA 3 Series is mono grade oil designed for gasoline engines. They provide excellent control over engine wear and deposit build-up and protection against rust and corrosion. ULTRALUBE VEGA 3 Oils are blended from refined base oils, with detergent dispersant, antioxidant and anti-wear additives, which provide good protection against sludge and corrosion.
APPLICATION:
ULTRALUBE VEGA 3 OIL Series is available in several viscosity grades for use in gasoline engines where oils are conforming to API Service Category API SE/CC is required.
BENEFITS:
.Keep engines cleaner.
.Good protection against corrosion and wear.
. Good oxidation stability.
Performance level:
API SE/CC
Product characteristics:
Products | Units | Value | Test Method | |||||
SAE Grade | - | 10W | 20 | 30 | 40 | 50 | ||
Specific Gravity | @ 15 °C | - | 0.800 | 0.884 | 0.892 | 0.897 | 0.901 | ASTM D-4052 |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
35.0 5.85 |
53.0 7.7 |
98.0 11.1 |
150.0 15.0 |
204.0 18.5 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 107 | 108 | 99 | 101 | ASTM D-2270 | ||
Flash Point, COC | °C | 230 | 228 | 242 | 250 | 274 | ASTM D-92 | |
Pour Point | °C | -30 | -24 | -21 | -18 | -18 | ASTM D-97 | |
Base Number | mg KOH/g | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | ASTM D-2896 | |
Sulphated Ash | % wt. | 0.52 | 0.52 | 0.52 | 0.52 | 0.52 | ASTM D-874 | |
Color | - | 2.0 | L 3.0 | 3.0 | 3.0 | 3.5 | ASTM D-1500 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRACYCLE SL (Low Smoke) is semi-synthetic two-stroke motorcycle oil formulated with a special low ash detergent & additive system. Its low ash characteristics and partly synthetic components makes it environment friendly and at the same time provide excellent protection against seizure, scuffing and wear. A diluent is added for easier mixing with gasoline. It is designed for engines requiring JASO FC/ISO EGC performance lubricants, including high output machines operating in severe conditions.
APPLICATION:
ULTRALUBE ULTRACYCLE SL (Low Smoke) is designed for use in two stroke air-cooled gasoline engines. It is also recommended for smaller engines fitted in scooters, motorcycles, lawnmowers, chainsaws and other small equipment. It should be added with gasoline in the ratio as recommended by the equipment manufacturer
BENEFITS:
.Controls combustion chamber and spark plug deposit build-up.
.Excellent miscibility with Gasoline.
.Keeps pistons, rings, plugs and exhaust ports clean.
.Good anti-wear properties/p>
Performance level:
API ………………………………….. TC
JASO ……………………………….. FC
ISOEGC
Product characteristics:
Products | Units | Value | Test Method | |||
Specific Gravity | @ 15 °C | 0.885 | ASTM D-4052 | |||
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
70.0 9.2 |
ASTM D-445 ASTM D-445 |
||
Flash Point, COC | °C | 195 | ASTM D-92 | |||
Pour Point | °C | -30 | ASTM D-97 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE PETROCYCLE TC is specially blended for two-stroke gasoline engine lubrication. It is inhibited with low ash detergent additives to provide protection against seizure, scuffing and wear. A diluent is added for easier mixing with gasoline.
APPLICATION:
ULTRALUBE PETROCYCLE TC is designed for use in two stroke air-cooled gasoline engines. It is also recommended for smaller engines fitted in scooters, motorcycles, lawnmovers, chainsaws and other small equipment. It should be added with gasoline in the ratio recommended by the equipment manufacturer.
BENEFITS:
.Excellent engine protection.
.Controls combustion chamber and spark plug deposit
.build-up.
.Excellent miscibility with Gasoline.
.Keeps pistons, rings, plugs and exhaust ports clean.
.Good anti-wear properties/p>
Performance level:
API ………………………… TC
Product characteristics:
Products | Units | Value | Test Method | |||
Specific Gravity | @ 15 °C | - | 0.885 | ASTM D-4052 | ||
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
69.0 91 |
ASTM D-445 ASTM D-44 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DIESEL ENGINE OIL
ULTRA CI4DESCRIPTION:
ULTRALUBE CI-4 is an Ultra High Performance Diesel engine (UHPD) oil designed to meet the most severe performance requirements of the latest high output, low emission European diesel engines including those equipped with Exhaust Gas Recirculation (EGR) after treatment system. Formulated with fully synthetic base oils and superior additive to provide the highest diesel engine performance levels
APPLICATION:
ULTRALUBE CI-4 aturally aspirated and turbocharged high speed, four-stroke diesel engines.
All automotive diesel engines.
High speed diesel engines equipped with EGR.
Commercial road transport in light, medium and heavy-duty service.
Off-highway vehicles.
All construction and earthmoving equipment.
Stop & Go vehicles in high soot loading services.
BENEFITS:
. Extra Soot dispersancy keeps fuel soot in suspension; avoid filter plugging, oil thickening and abrasive polishing wear. Exceptional oxidation stability at high temperature, and soot control minimizes degradation sludge formation and oil thickening, consequently longer drain intervals.
. Fuel economy due to superior group Ill base stocks.
. Multipurpose oil for old and new engines, including engines equipped with EGR.
. Shear-stable viscosity Index improver prevents oil flow through the piston rings by maintaining oil viscosity in the high temperature ring belt area, while special low volatility synthetic fluids reduces oil evaporation.
. Minimize level of NOx emitted to atmosphere, reduces pollution.
Performance level:
API CI-4
ACEA E4-99 Issue 3
VOLVO VDS-3
MTU Type 3
Renault Trucks…………..…RXD/RLD-2
Scania LDF-2
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | @ 15°C | - | 15W-40 | 20W50 | ASTM D-4052 | |
Specific Gravity | @ 15°C | - | 0,890 | 0.8928 | ASTM D-4052 | |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
111,0 15.5 |
167.2 18.4 |
ASTM D-445 ASTM D-445 |
|
Viscosity Index | °C | 147 | 123 | ASTM D-92 | ||
Flash Point, COC | °C | 226 | 224 | ASTM D-92 | ||
Pour Point | °C | -27 | -24 | ASTM D-97 | ||
Sulphated Ash | mg KOH/g | 11.5 | ASTM D-874 | |||
Sulphated Ash | % wt. | 1.2 | 1.2 | ASTM D-874 | ||
Color | - | 4.0 | 4.0 | ASTM D-1 500 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE MASTER CH-4 is a premium top quality automotive engine oil meeting obsolete, current and future engine oil performance level, particularly European and American standards. It is an ideal mixed fleet engine oil meeting API CI-14/SJ and ACEA E3 I B3 / A3-98. The additive chemistry used in manufacturing ULTRALUBE MASTER CH-4 has proven its performance in the field,.
APPLICATION:
ULTRALUBE MASTER CH-4 is mixed fleet engine oil for heavy-duty diesel engine oil. Its long drain capability meets the requirement of VOLVO, SCAN IA, MAN, MERCEDES-BENZ, RVIi MACK, CATERPILLAR, RENAULT and CUMMINS manufacturers. It is recommended for both on-highway and off-highway engines for low emissions and old engines of conventional design fuelled by low and high sulfur diesel fuels. Suitable for direct and indirect injection and for Turbo charged and Super charged stationary and mobile Diesel Engines,.
BENEFITS:
.Diesel engine oil for American, European Korean and Japanese vehicles Suitable for direct and indirect fuel injection.
.Universal engine oil for old and new diesel engine fuelled by both high and low sulphur diesel.
.Proven field-tested engine oil with extended drain period capability
.Excellent TBN retention for low and high sulphur diesel fuel operation,
.Effective control over high temperature piston deposits and soot accumulation.
.Excellent dispersant capabilities which will minimize sludge and varnish deposits.
Performance level:
API....CH4/CG4/CF4/SL (Approved)
ACEA. E3, E2, A3/B3/84
CAT ECF-1
MB 228.3/2, 229.1 (Approved)
MAN M3275
VOLVO VDS-2 (Approved)
MACK EO-M
VW 501.01/505.00
CUMMINS. CES 20072 / 71
ALLISON C-4
RENAULT TRUCK RD / RD2
MTU/DDC Type 2
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | @ 15°C | - | 15W-40 | - | ||
Specific Gravity | @ 15°C | - | 0.8895 | ASTM D-4052 | ||
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
110.40 15.00 |
ASTM D-445 ASTM D-445 |
||
Viscosity Index | 141 |
ASTM D-445 ASTM D-2270 |
||||
Flash Point, COC | °C | 224 | ASTM D-92 | |||
Pour Point | °C | -27 | ASTM D-97 | |||
Sulphated Ash | % wt. | 1.48 | ASTM D-874 | |||
Base Number | mg KOH/g | 10.67 | ASTM 0-2896 | |||
MRV | cP | 24040 | - | |||
CCS Viscosity | @-20 °C | cP | 6425 | ASTM 0-5293 | ||
HTHS Viscosity | @ 150 °C | cP | 4.17 | AST IVI 0-5481 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE SUPER CG-4 A super high-performance, premium quality, heavy duty diesel engine oil designed for the most severe performance requirements of modern, highly rated turbocharged diesel engines in road transport & off-highway operations. It contains high alkalinity reserve to reduce acid formation. The oil is approved under the Mercedes-Benz Sheet MB 228.3. It also meets the latest performance requirements of most European and American engine builders for high output diesel engines ,
APPLICATION:
ULTRALUBE SUPER CG-4 Is a Super High Performance Diesel (SHPD) engine oil suitable for use in a variety of highly rated turbocharged and naturally aspirated high-speed diesel engines. It can also be used for some types of gasoline engines, making it ideal for mixed fleet operations. It has long-drain-oil characteristic and maintains performance features throughout its service life.
BENEFITS:
.Extends overhaul intervals.
.Effective control on bore polishing.
.Allows extended oil drain period.
.Maintains excellent engine cleanliness.
.Outstanding thermal stability.
.Excellent shear stability stays in grade throughout service life.
. Maximum control of piston deposits & ring sticking.
Performance level:
API …………………………… CG4/CF4/SJ
ACEA ……..……. E3-96/B3-96/A3-96
MB …………………………. 228.3/229.1
VOLVO ……………………………….. VDS
MTU ………………………………. TYPE 2
Allison ………………………………….. C4
CAT …………………………………… TO-2
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | 15W-40 | |||||
Specific Gravity | @ 15°C | - | 0.901 | ASTM D-4052 | ||
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
120.0 15.6 |
ASTM D-445 ASTM D-445 |
||
Viscosity Index | - | 137 | ASTM D-2270 | |||
Flash Point, COC | °C | 250 | ASTM D-92 | |||
Pour Point | °C | -27 | ASTM D-97 | |||
Base Number | mg Oh/g | 11.0 | ASTM D-2896 | |||
Sulphated Ash | % wt. | 1.37 | ASTM D-874 | |||
Color | 6.5 | ASTM D-1500 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE TURBO CF-4 is high quality multi-grade heavy-duty diesel engine oil developed from the latest lubrication technology. They exceed meet the performance requirements of naturally aspirated, supercharged, and turbo charged high output diesel engines.
APPLICATION:
ULTRALUBE TURBO CF-4 is suitable for use in heavy duty and high speed diesel engines and are particularly suited for heavy duty truck applications. They can also be used where API CE, CD oils are recommended.
BENEFITS:
. Can be used for all seasons.
.Maintains high engine cleanliness.
. Greater control of deposit formations.
.Prolonged oil life due to high oxidation stability at high ternperatures.
.Excellent shear stability, maintains its viscosity grade.
. Protects against rust, wear and sludge formation.
Performance level:
API ……………………………. CF4
MAN …………………………. 271
ACEA ………………………. E2-96
VOLVO ………………………. VDS
MB ………………… ……… 225.1
ALLISON ……………………… C4
MACK ………………….. EO-K12
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | 15W40 | |||||
Specific Gravity | @ 15°C | - | 0.888 | ASTM D-4052 | ||
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
115.2 15.42/td> |
ASTM D-445 ASTM D-445 |
||
Flash Point, COC | 140 | ASTM D-92 | ||||
Flash Point, COC | °C | 238 | ASTM D-92 | |||
Pour Point | °C | -27 | ASTM D-97 | |||
Sulphated Ash | % wt. | 1.323 | ASTM D-874 | |||
Color | L 3.5 | ASTM D-1500 | ||||
Base Number | Mg KOH/g | 9.0 | ASTM D-2896 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:

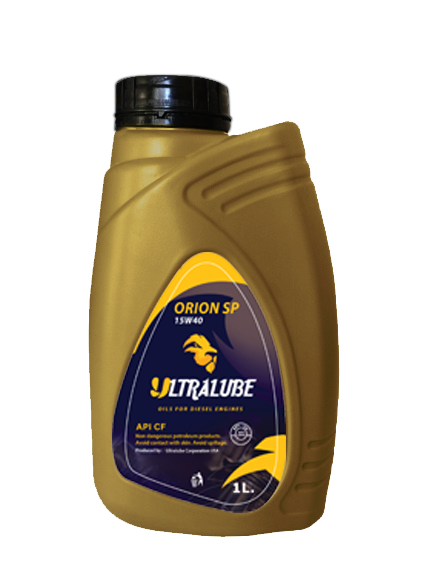

ULTRALUBE ORION SP is high quality multigrade diesel engine oil developed for modern diesel engines, formulated from thermally stable mineral base oils, offering excellent dispersant/detergent characteristics, anti-oxidant and anti-wear properties with relatively high alkalinity reserve.
APPLICATION:
ULTRALUBE ORION SP is recommended for use in modern highly rated diesel engines installed in construction, transport, agriculture and other heavy-duty equipment.
BENEFITS:
. Reduced oil consumption.
. Reduced bore polishing,
.Excellent protection against corrosive wear caused by high-sulfur fuels.
.Extended engine life.
.Improved fuel economy.
. Improved resistance to ring sticking, ring and cylinder liner wear, valve and combustion deposits.
Performance level:
API CF
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | - | 15W40 | 20W50 | |||
Specific Gravity | @ 15°C | - | 0.8895 | 0.8892 | ASTM D-4052 | |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
114.9 15.07 |
167.2 18.4 |
ASTM D-445 ASTM D-445 |
|
Viscosity Index | °C | 136 | 123 | ASTM D-2270 | ||
Flash Point, COC | °C | 236 | 244 | ASTM D-92 | ||
Pour Point | °C | -27 | -21 | ASTM D-97 | ||
Sulphated Ash | % wt. | 1.62 | 1.62 | ASTM D-874 | ||
Base Number | mg KOH/g | 12.1 | 12.1 | ASTM 0-2896 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:

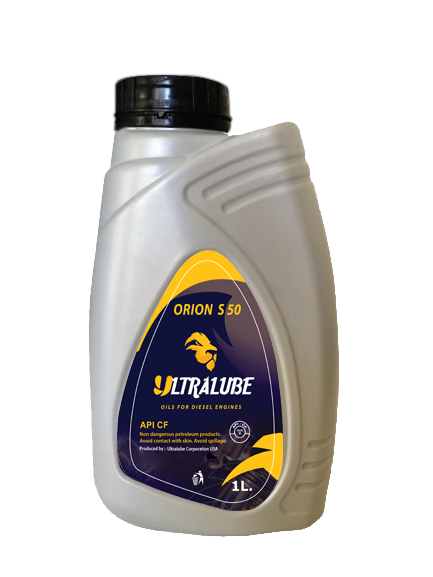

ULTRALUBE ORION S Series heavy duty oil is developed primarily for high output, naturally aspirated or supercharged diesel engines, operating under moderate conditions. ULTRALUBE ORION S oil series are formulated from high VI mineral base oils and chemical additives which provide dispersant, detergent, anti-oxidant, anti-wear, anti-rust properties.
APPLICATION:
ULTRALUBE ORION S Series oil is recommended for use in diesel engines fitted in automotive, agricultural and construction equipments, operating in fleet and construction business where relatively moderate Sulphur fuel is used and other severe service factors are considered..
BENEFITS:
.Excellent protection against the effects of high-sulphur fuels.
.Good control of high temperature deposits.
.improved resistance to ring sticking, ring and cylinder wear, valve and combustion deposits.
.Long engine life.
Performance level:
API ……………………………………… CF
CATERPILLAR ..…………………. TO2
ALLISON ……………………….…… C-3
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||||
SAE Grade | - | 10W | 20 | 30 | 40 | 50 | - | |
Specific Gravity | @ 15°C | 0.8829 | 0.889 | 0.8953 | 0.90050 | 0.9032 | ASTM D-4052 | |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
32.05 5.54 |
56.0 7,8 |
92.7 10.79 |
151.8 14,89 |
213.6 18.55 |
ASTM D-445 ASTM D-445 |
Viscosity Index | 109 | 104 | 100 | 97 | 96 | ASTM D-2270 | ||
Flash Point, COC | 224 | 224 | 232 | 258 | 268 | ASTM D-92 | ||
Pour Point | °C | -30 | -24 | -21 | -18 | -15 | ASTM D-97 | |
Sulphated Ash | % wt. | 1.145 | 1.145 | 1.145 | 1.145 | 1.145 | ASTM D-874 | |
Color | - | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ASTM D-1500 | |
Base Number | mg KOH/g | 10.15 | 10.15 | 10.15 | 10.15 | 10.15 | ASTM D-2896 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ORION C OIL Series is high quality oils suitable for diesel engines, either naturally aspirated or supercharged. They provide good control over high temperature deposits, sludge, rust, corrosion and wear. ULTRALUBE ORION C oils are formulated with chemically stable, high VI base stocks and chemical additives that impart dispersant and detergent properties and resistance to oxidation, corrosion, wear and rusting..
APPLICATION:
ULTRALUBE ORION C OIL Series is recommended for use in diesel engines either naturally aspirated or supercharged. They provide good performance under conditions of high speed, high load, high-temperature operation which require API Service Category CC quality oil.
BENEFITS:
.Improved control over high-temperature varnish deposits deposits.
.Minimize low temperature sludge build-up.
.Good protection against rust and corrosion..
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||||
SAE Grade | - | 10W | 20 | 30 | 40 | 50 | - | |
Specific Gravity | @ 15°C | - | 0.880 | 0.885 | 0.893 | 0.898 | 0.802 | ASTM D-4052 |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
35.0 5.84 |
53.0 7.6 |
95.0 11.1 |
146.0 15.0 |
199.0 18.5/td> |
ASTM D-445 ASTM D-445 |
Viscosity Index | °C | 110 | 106 | 101 | 103 | 103 | ASTM D-92 | |
Flash Point COC | °C | 230 | 236 | 250 | 255 | 270 | ASTM D-92 | |
Pour Point | °C | -30 | -24 | -21 | -15 | -15 | ASTM D-97 | |
Base Number | mg KOH/g | 6.45 | 6.45 | 6.45 | 6.45 | 6.45 | ASTM D-1500 | |
Sulphated Ash | % wt. | 0.48 | 0.48 | 0.48 | 0.48 | 0.48 | ASTM D-874 | |
Color | - | 2.0 | 2.0 | 2.5 | 3.0 | 3.5 | ASTM D-2896 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
GEAR AND TRANSMISSION OIL
GEAR OIL HD5DESCRIPTION:
ULTRALUBE GEAR OIL HD5 is an extreme-pressure automotive gear lubricant formulated from solvent-refined mineral base oils and containing special Sulphur phosphorous additives to produce a superior gear lubricant with extreme pressure characteristics and thermal stability for automotive applications over a wide range of temperatures.
APPLICATION:
ULTRALUBE GEAR OIL HD5 Recommended for the type of service characteristics of gears, particularly hypoid, in passenger cars and other automotive equipment, operated under high-speed/shock-load, high-speed/low torque, and low-speed/high-torque conditions
BENEFITS:
.Excellent protection against wearing and scoring produced by high speed and heavy loads.
.Suitable for a wide variety of applications and service conditions.
.Superior protection against rusting, pitting and corrosion.
.Excellent load carrying capacity and good antifoam properties.
.Compatible with seals and gaskets.
.Good anti-wear properties/p>
Performance level:
API ……………………. GL – 5
Product characteristics:
Products | Units | Value | Test Method | |||
Specific Gravity | @ 15 °C | - | 0.904 | 0.911 | ASTM D-4052 | |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
2.6.0 414.0 |
18.1 28.4 |
ASTM D-445 ASTM D-445 |
|
Viscosity Index | - | 96 | 95 | ASTM D-2270 | ||
Flash Point, COC | °C | 220 | 236 | ASTM D-92 | ||
Pour Point | °C | -9 | -9 | ASTM D-97 | ||
Color | - | L 3.0 | L 3.0 | ASTM D-1500 | ||
Product Code | - | 3040 | 3050 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE GEAR OIL HDC5 Series is heavy-duty extreme-pressure multigrade gear oil, developed to meet the most severe service requirements of manual transmissions in automotive vehicles.
APPLICATION:
ULTRALUBE GEAR OIL HDC5 Series Recommended for use in hypoid gear units of passenger cars and other automotive gear units operated under high-speed/shock load, high-speed/low torque and low-speed/high torque conditions. Also provides low temperature viscosity characteristics at lower operating temperature conditions.
BENEFITS:
.Suitable for all seasons.
.Excellent chemical stability and resistance to foaming.
.Superior protection against rusting, pitting and corrosion.
.Excellent load carying capacity.
.Good anti-wear properties/p>
Performance level:
API GL-5
MILL 2105D
Product characteristics:
Products | Units | Value | Test Method | |||
SAE | @ 15 °C | - | 85W140 | 85W90 | ASTM D-4052 | |
Gradle Specific | @ 15 °C | - | 0.905 | 0.904 | ASTM D-4052 | |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
390 199.0 |
28.34 18.0 |
ASTM D-445 ASTM D-445 |
|
Viscosity Index | - | 100 | 98 | ASTM D-2270 | ||
Flash Point, COC | °C | 230 | 220 | ASTM D-92 | ||
Pour Point | °C | -18 | -18 | ASTM D-97 | ||
Color | - | 3.5 | 3.0 | ASTM D-1500 | ||
Product Code | - | 3070 | 3190 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE GEAR OIL HDC5 Series is heavy-duty extreme-pressure multigrade gear oil, developed to meet the most severe service requirements of manual transmissions in automotive vehicles.
APPLICATION:
ULTRALUBE GEAR OIL HDC5 Series Recommended for use in hypoid gear units of passenger cars and other automotive gear units operated under high-speed/shock load, high-speed/low torque and low-speed/high torque conditions. Also provides low temperature viscosity characteristics at lower operating temperature conditions.
BENEFITS:
.Suitable for all seasons.
.Excellent chemical stability and resistance to foaming.
.Superior protection against rusting, pitting and corrosion.
.EXCELLENT LOAD CARYING CAPACITY.
.Good anti-wear properties/p>
Performance level:
API GL-5
MILL 2105D
Product characteristics:
Products | Units | Value | Test Method | |||
SAE | @ 15 °C | - | 85W140 | 85W90 | ASTM D-4052 | |
Gradle Specific | @ 15 °C | - | 0.905 | 0.904 | ASTM D-4052 | |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
390 199.0 |
28.34 18.0 |
ASTM D-445 ASTM D-445 |
|
Viscosity Index | - | 100 | 98 | ASTM D-2270 | ||
Flash Point, COC | °C | 230 | 220 | ASTM D-92 | ||
Pour Point | °C | -18 | -18 | ASTM D-97 | ||
Color | - | 3.5 | 3.0 | ASTM D-1500 | ||
Product Code | - | 3070 | 3190 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE GEAR OIL MP4 is a high-quality gear lubricant blended from solvent-refined mineral base oils and selected chemical additives. Due to its high shear stability, it provides excellent protection for gears and can be used over a wide range of temperatures. it also provides protection against foaming of oil, wear and rusting of gears.
APPLICATION:
ULTRALUBE GEAR OIL HDC5 Series Recommended for the type of service characteristics of gears, particularly hypoid, in passenger cars and other automotive-type equipment operated under high-speed/low torque and low-speed/ high-torque conditions .
BENEFITS:
.Formulated for automotive high-speed gears.
.Excellent lubrication without channeling at low temperatures.
.Suitable for heavy-duty service in truck and bus gears operating at high temperatures.
.Provides good protection against corrosion.
.Good anti-wear properties/p>
Performance level:
API ………………… GL-4
MIL-L ……………….. 2105
Mercedes Benz …. 235.1
ZF TEML 08A
=Product characteristics:
Products | Units | Value | Test Method | |||
SAE Grade | @ 15 °C | - | 85W90 | ASTM D-4052 | ||
Specific Gravity | @ 15 °C | - | 0.900 | ASTM D-4052 | ||
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
174.0 16.5 |
ASTM D-445 ASTM D-445 |
||
Viscosity Index | - | 99 | ASTM D-2270 | |||
Flash Point, COC | °C | 226 | ASTM D-92 | |||
Pour Point | °C | -18 | ASTM D-97 | |||
Color | - | L3.0 | ASTM D-1500 | |||
Product Code | - | 3200 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:

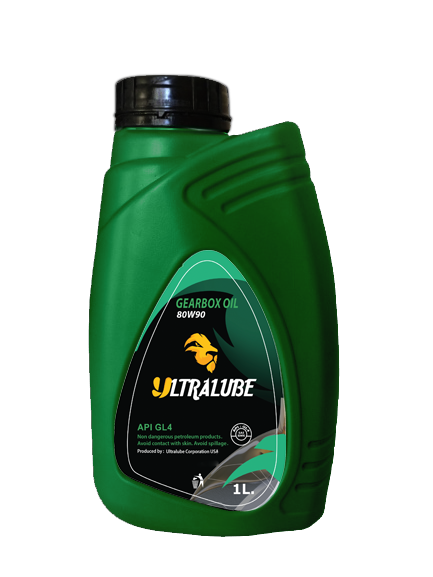

ULTRALUBE GEAR OIL Series is a high-quality gear lubricant blended from solvent-refined mineral base oils and selected chemical additives. Due to its high shear stability they provide excellent protection for gears and can be used over a wide range of temperatures. It also provides protection against foaming of oil, and wear and rusting of gears
APPLICATION:
ULTRALUBE GEAR OIL Series Recommended for the type of service characteristics of gears, particularly hypoid, in passenger cars and other automotive-type equipment, operated under high-speed/low torque and low speed/ high torque conditions.
BENEFITS:
.Formulated for automotive high-speed gears.
.Excellent lubrication without channeling at low temperatures.
.Superior protection against rusting, pitting and corrosion.
.Suitable for heavy-duty service in truck and bus gears operating at high temperatures.
.Provides good protection against corrosion.
.Good anti-wear properties/p>
Performance level:
API GL-4
Product characteristics:
Products | Units | Value | Test Method | |||
SAE Grade | @ 15 °C | - | 90 | 140 | ASTM D-4052 | |
Gradle Specific | @ 15 °C | - | 0.901 | 0.908 | ASTM D-4052 | |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
200.0 18.0 |
435.0 29.5 |
ASTM D-445 ASTM D-445 |
|
Viscosity Index | - | 98 | 96 | ASTM D-2270 | ||
Flash Point, COC | °C | 232 | 236 | ASTM D-92 | ||
Pour Point | °C | -9 | -9 | ASTM D-97 | ||
Color | - | L3.0 | 3.0 | ASTM D-1500 | ||
Product Code | - | 3010 | 3020 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE GEARLUBE EP-L is extra high performance, heavy-duty industrial gear oils having outstanding extreme pressure characteristics and load carrying properties, intended for use in all types of enclosed gear drives with circulation or splash lubrication system under severe service conditions. They have friction modifying characteristics that reduce power consumption and lower bulk oil temperature ULTRALUBE GEARLUBE EP-L OIL Series are formulated from high-quality; high VI base oils selected for their excellent oxidation stability. They have excellent water separating properties and they are strongly resistant to foaming in service. Additives are incorporated which provide anti-wear properties, rust and corrosion protection
APPLICATION:
ULTRALUBE GEARLUBE EP-L is recommended for industrial enclosed gear drives for both circulation and splash systems. They are particularly recommended for gear sets operating under heavy or shock load such as spur, helical, spiral, worm and bevel gear drives. Specific application include; Industrial gearing for conveyors, agitators, dryers, fans, mixer, presses, pulpers, pumps, screens, extruders and other heavy duty application.
BENEFITS:
.Excellent load-carrying capacity.
. Outstanding anti-wear properties.
.Excellent oxidation stability.
.Rust and corrosion protection.
.Excellent lubricity & good anti foam properties.
.Effective demulsibility for rapid water separation.
.Resistance to micro-pitting.
.Good anti-wear properties/p>
Performance level:
ISO 12925-1 CKC/CKD
David Brown S1.53.101
U.S. Steel 224
GM LS 2EP Gear Oil
Cincinnati Machine Gear
DIN 51517 Part 3
AGMA 251.02
AGMA 9005-E02
FLANDER GEARS
Product characteristics:
Products | Units | Value | Test Method | |||||
ISO Grade | 150 | 220 | 320 | 460 | 680 | DIN 51511 | ||
AGMA Lubricant Number | - | 4EP | 5EP | 6EP | 7EP | 8EP | - | |
Specific Gravity | @ 15 °C | - | 0.898 | 0.899 | 0.9037 | 0.907 | 0.906 | ASTM D-4052 |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
150 15.0 |
220 19.3 |
320 24.5 |
460 30.8 |
680 39.7 |
ASTM D-445 ASTM D-445 |
Viscosity Index | 100 | 99 | 98 | 97 | 97 | ASTM D-2270 | ||
Flash Point, COC | °C | 254 | 256 | 260 | 280 | 280 | ASTM D-92 | |
Pour Point | °C | -12 | -12 | -9 | -9 | -9 | ASTM D-97 | |
Color | 2.0 | 2.5 | 3.0 | L 3.5 | L 3.5 | ASTM D-1500 | ||
Timken OK Load | lb | 60 | 60 | 3.0 | 70 | 70 | 70 | ASTM D-1500 |
FZG Scuffing, Stage Passed | - | 12+ | 12+ | 12+ | 12+ | 12+ | ASTM D-1500 | |
Copper Strip Corrosion 3hrs | @ 100°C | 1A | 1A | 1A | 1A | 1A | ASTM D-130 | |
Product Code | 3130 | 5450 | 5470 | 5310 | 3000 |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE GEARLUBE EP Oil Series is premium quality, heavy-duty industrial gear lubricant formulated for enclosed gear sets operating under severe service conditions. is formulated from high-quality, high VI base oils selected for its oxidation stability and water-separating characteristics. Additives are incorporated which provide extreme pressure and anti-wear properties, rust and corrosion protection, increased oxidation stability, improved resistance to foaming and excellent high load performance characteristics.
APPLICATION:
ULTRALUBE GEARLUBE EP OIL Series is recommended for industrial enclosed gear drives for both circulation and splash systems. It is particularly recommended for gear sets operating under heavy or shock load such as spur, helical and bevel gear drives.
BENEFITS:
.Excellent load-carrying capacity.
.Outstanding anti-wear properties.
.Excellent oxidation stability.
.Rust and corrosion protection.
.Excellent lubricity & good anti foam properties.
.Minimizes friction, resulting in reduced bulk oil temperature.
.Effective demulsibility for rapid water separation.
.Resistance to micro-pitting.
.Good anti-wear properties/p>
Performance level:
AGMA 250.04 (EP)
David Brown Table E
U.S. Steel 251.02 (EP)
DDIN 51517 9005-D94 (EP)
Product characteristics:
Units | Value | Test Method | |||||||||
ISO Grade | - | 68 | 100 | 150 | 220 | 230 | 460 | 680 | 1000 | DIN 51511 | |
AGMA Lubricant Number | - | 2EP | 3EP | 4EP | 5EP | 6EP | 7EP | 8EP | |||
Gradle Specific @ 15 °C | - | 0.886 | 0.891 | 0.896 | 0.901 | 0.903 | 0.908 | 0.913 | 0.918 | ASTMD-4052 | |
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
68.5 8.88 |
98.8 11.4 |
154 15.3 |
223.6 19.3 |
325.6 24.4 |
450 30.4 |
680 39.1 |
1002 55.31 |
ASTM D-445 ASTM D-445 |
Viscosity Index | 102 | 99 | 100 | 98 | 96 | 97 | 97 | 106 | ASTM D-2270 | ||
Flash Point, COC | °C | 246 | 246 | 252 | 252 | 254 | 256 | 258 | 262 | 269 | ASTM D-92 |
Pour Point | °C | -15 | -15 | -15 | -12 | -9 | -9 | -9 | -9 | ASTM D-97 | |
Color | - | 1.5 | L2.0 | 2.0 | L 2.5 | 2.5 | 3.5 | 4.0 | 4.5 | ASTM D-1500 | |
Timken OK Load | lb | 60 | 60 | 60 | 60 | 70 | 70 | 70 | 70 | - | |
FZG Test, No. Stage Passed | - | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | ||
Product Code | - | 6320 | 6330 | 6340 | 6360 | 6360 | 3070 | 3080 | 3980 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:

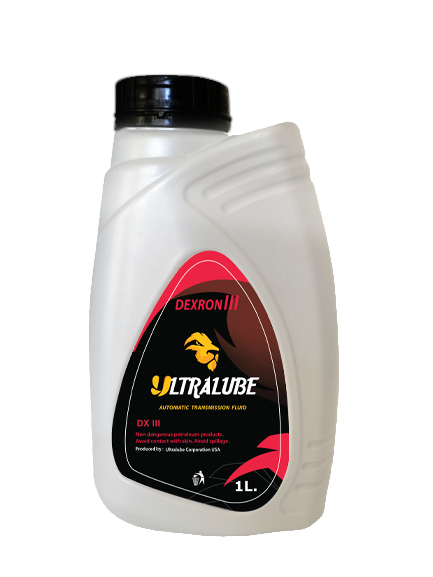

ULTRALUBE ATF DEXRON III Is high performance, multifunctional fluid designed to meet the requirements of General Motors Dexron-III, Ford Mercon & Allison C-3 or C-4 specifications. It provides good oxidation stability & friction resistance ensuring consistent & smooth power shifting.
APPLICATION:
ULTRALUBE ATF DEXRON III is formulated to meet the automatic transmission fluid requirements of modern vehicles. Also meets the hydraulic fluid requirements of certain industrial and mobile equipment.
BENEFITS:
.Friction modifier provides smooth shifting & trouble free operation.
.Excellent oxidation resistance resulting in cleaner transmissions.
.Compatible with all types of rubbers, elastomers and metals, and providing protection against wear and leakage.
.Excellent low-temperature fluidity.
.Better shear stability.
.Completely miscible at any proportions with other allied automatic transmission fluids with no separation or color change.
Performance level:
All grade except HD 10wFORMER GENERAL MOTORS/p>
DEXRON ……………………III (H)
FORD MERCON …… M950309
ALLISON ………………..C3 or C-4
CATERPILLAR ………… TO-2
VOITH
Product characteristics:
PROPERTIES | Units | Value | The Method | |||
PROPERTIES | © 15 °C | - | 0.8590 | ASTM D-4052 | ||
Specific Gravity | @ 15 °C | - | 0.8320 | 0.865 | 0.877 | ASTM D-4052 |
Viscosity | @ 40 °C @ 100 °C | mm2/s
mm2/s |
15.2 3.85 |
22 4.3 |
34.7 5.7 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 141 | 100 | 103 | ASTM D-2270 | |
Flash Point, COC | °C | 185 | 209 | 230 | ASTM D-92 | |
Pour Point | °C | -42 | -15 | -27 | ASTM D-97 | |
Color | - | 0.5 | <1.0 | 1.5 | ASTM D-1500 | |
Neutralization No. | mg K01-11g | 1.0 | 0.38 | - | ASTM D-974 | |
Product Code | - | 5620 | 56308 | 2110/td> | - |
DESCRIPTION:
ULTRALUBE (ATF/A) II E is formulated to meet the requirements for passenger car and light truck automatic transmissions, power steering and other hydraulic systems. Recommended for application where former DEXRON II D oils are in use.
APPLICATION:
ULTRALUBE (ATF/A) A is recommended for torque converters where Allison C-2 application is required. It can also be used in hydraulic systems, gear applications, power steering units and certain manual gearboxes.
BENEFITS:
.Effective frictional characteristics for smooth shifting.
. Excellent fluidity at low temperature applications.
.Good protection against wear.
.Reduced foaming and fluid loss under severe service conditions.
.Protection against high-temperature deposits in heavy deuty service.
.Good anti-wear properties/p>
Performance level:
DEXRON ………………………………I I E
Product characteristics:
Products | Units | Value | Test Method | |||
Flash Point, COC | °C | 188 | ASTM D-92 | |||
Pour Point | °C | -45 | ASTM D-97 | |||
Color | - | Red | Visual | |||
Product Code | - | 3340 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE AUTOMATIC TRANSMISSION FLUID (ATF) II-D is formulated from special high-quality solvent refined mineral base oils combined with VI Improvers, anti-oxidants, anti-wear agents, detergents, anti-foaming agents and special additives to provide controlled friction or lubricity characteristics. ATF II-D serves as a power-transmission fluid in the torque converter, hydraulic fluid in the control and servo systems, as a lubricant for bearing and gears and as a friction-controlling medium for bands and clutches.
APPLICATION:
ULTRALUBE ATF II D is formulated to meet the requirements for passenger car and light truck automatic transmissions, power steering and other hydraulic systems.
BENEFITS:
.Effective frictional characteristics for smooth shifting.
.Excellent fluidity at low temperature applications.
.Good protection against wear.
.Reduced foaming and fluid loss under severe service conditions.
.Protection against high-temperature deposits in heavy duty service.
Performance level:
DEXRON II D
Product characteristics:
PROPERTIES | Units | Value | TEST METHOD | |||
Specific Gravity | @ 15 °C | - | 0.878 | ASTM D-4052 | ||
Viscosity | @ 40 °C @ 100 °C | mm2/s
mm2/s |
37.0 7.17 |
ASTM D-445 ASTM D-445 |
||
Flash Point, COC | °C | 160 | ASTM D-92 | |||
Pour Point | °C | -42 | ASTM D-97 | |||
Color | - | RED | Visual | |||
Product Code | - | 3300 | - |
DESCRIPTION:
ULTRALUBE AUTOMATIC TRANSMISSION FLUID TYBE A (ATF/A) is blended with specially balanced additives. This product possesses high-temperature oxidation resistance, dispersancy and detergency, anti-corrosion and rust-prevention characteristics. Its high viscosity index and low pour point permits smooth operation of some hydraulic equipment under varying climatic condition.
APPLICATION:
ULTRALUBE (ATF/A) A is recommended for torque converters where Allison C-2 application is required. It can also be used in hydraulic systems, gear applications, power steering units and certain manual gearboxes.
BENEFITS:
.Low temperature fluidity.
.Good anti-wear properties/p>
Performance level:
All grade except HD 10wTYPE / SUFFIX 'A'
DAIMLER BENZ 236.2
ALLISON …………………….C-2
Product characteristics:
Products | Units | Value | Test Method | |||
Specific Gravity | @ 15 °C | - | 0.878 | ASTM D-4052 | ||
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
39.0 7.3 |
ASTM D-445 ASTM D-445 |
||
Viscosity Index | - | 154 | ASTM D-2270 | |||
Flash Point, COC | °C | 204 | ASTM D-92 | |||
Pour Point | °C | -42 | ASTM D-97 | |||
Color | - | Red | Visual | |||
Product Code | - | 3120 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
INDUSTRIAL OIL
HYDRAULIC AW LV
DESCRIPTION:
IULTRALUBE HYDRAULIC OILS AW are blended from high quality, chemically-stable solvent refined base oils and incorporated with balanced additive system which include anti wear and oxidation inhibitors. Utilization of HYDRAULIC OILS AW will provide excellent wear protection in hydraulic and circulation systems and good air release properties.
APPLICATION:
ULTRALUBE HYDRAULIC OILS AW are recommended for most types of hydraulic Systems, moderately-loaded gears and bearing lubricated by circulation and bath and ring oiling. They are not recommended to be used with yellow and white metals components in any equipment. They are available in a wide range of viscosities to meet a variety of design and operating Requirements.
BENEFITS:
.Excellent anti-wear performance.
. Provide rust and corrosion protection.
.EFFECTIVE PROTECTION AGAINST RUST AND CORROSION.
.Superior Filterability.
. Low friction.
. Excellent water separation, air release and antifoam properties.
. Hydrolytic stability.
. Seal and paint compatibility.
Performance level:
All grade except HD 10wAFNOR NFE …………………. 48603HM
CINCINNATI MILACRON ……… P-68
…………………………………………… P-69
……………………………………………. P-70
DAVID BROWN ………………..TABLE E
DENISON …………………….. HF-O,HF-2
DIN 51524 ……………………….. PART II
SPERRY VICKERS …………. M2925S
Product characteristics:
PROPERTIES | Units | Value | Test Method | |||
ISO Grade | - | 15 | 22 | HD 10W** | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.8320 | 0.865 | 0.877 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
15.2 3.85 |
22 4.3 |
34.7 5.7 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 141 | 100 | 103 | ASTM D-2270 | |
Flash Point, COC | °C | 185 | 209 | 230 | ASTM D-92 | |
Pour Point | °C | -42 | -15 | -27 | ASTM D-97 | |
Color | - | 0.5 | <1.0 | 1.5 | ASTM D-1500 | |
Neutralization No. | mg K01-11g | 1.0 | 0.38 | - | ASTM D-974 | |
Product Code | - | 5620 | 56308 | 2110 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur
DESCRIPTION:
IULTRALUBE HYDRAULIC OILS AW are blended from high quality, chemically-stable solvent refined base oils and incorporated with balanced additive system which include anti wear and oxidation inhibitors. Utilization of Hydraulic Oils AW will provide excellent wear protection in hydraulic and circulation systems and good air release properties.
APPLICATION:
ULTRALUBE HYDRAULIC OILS AW are recommended for most types of hydraulic Systems, moderately-loaded gears and bearing lubricated by circulation and bath and ring oiling. They are not recommended to be used with yellow and white metals components in any equipment. They are available in a wide range of viscosities to meet a variety of design and operating Requirements.
BENEFITS:
.Excellent anti-wear performance.
. Provide rust and corrosion protection.
.EFFECTIVE PROTECTION AGAINST RUST AND CORROSION.
.Superior Filterability.
. Low friction.
. Excellent water separation, air release and antifoam properties.
. Hydrolytic stability.
. Seal and paint compatibility.
Performance level:
All grade except HD 10wAFNOR NFE …………………. 48603HM
CINCINNATI MILACRON ……… P-68
…………………………………………… P-69
……………………………………………. P-70
DAVID BROWN ………………..TABLE E
DENISON …………………….. HF-O,HF-2
DIN 51524 ……………………….. PART II
SPERRY VICKERS …………. M2925S
Product characteristics:
PROPERTIES | Units | Value | Test Method | |||
ISO Grade | - | 15 | 22 | HD 10W** | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.8320 | 0.865 | 0.877 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
15.2 3.85 |
22 4.3 |
34.7 5.7 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 141 | 100 | 103 | ASTM D-2270 | |
Flash Point, COC | °C | 185 | 209 | 230 | ASTM D-92 | |
Pour Point | °C | -42 | -15 | -27 | ASTM D-97 | |
Color | - | 0.5 | <1.0 | 1.5 | ASTM D-1500 | |
Neutralization No. | mg K01-11g | 1.0 | 0.38 | - | ASTM D-974 | |
Product Code | - | 5620 | 56308 | 2110 | - |
*Non ISO grade The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE HYDRAULIC OIL VH Series is anti-wear oil blended with high quality base oils incorporated with special additives that impart superior viscosity / temperature characteristics. They have a very high viscosity index and low pour points to provide fluidity at sub-zero temperatures, and they remain suitable for widely varying ambient temperatures.
APPLICATION:
ULTRALUBE HYDRAULIC OIL VH Series is specially suited for hydraulic systems, which are subjected to extremes of temperature. Suitable for Hydraulic and Fluid Power Transmission system subjected to wide variation in temperature or where low viscosity change with fluctuating temperature is required. They are available in a wide range of viscosities to meet a variety of design and operating requirements.
BENEFITS:
.Very low viscosity variation with temperature.
.High shear stability.
.Oxidation resistant.
.Excellent filterability.
.Efficient anti-wear performance.
.Rust and corrosion protection.
Performance level:
AGMA ……………………………A 250.04Product characteristics:
PROPERTIES | Units | Value | Test Method | ||||
ISO Grade | - | 15 | 32 | 46 | 68 | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.8320 | 0.871 | 0.876 | 0.882 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
15.2 3.85 |
32.6 6.4 |
44.0 7.90 |
67.3 10.84 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 153 | 152 | 152 | 152 | ASTM D-2270 | |
Flash Point, COC | °C | 185 | 224 | 220 | 226 | ASTM D-92 | |
Pour Point | °C | -42 | -39 | -39 | -36 | ASTM D-97 | |
Color | - | 1.0 | 1.0 | L1.5 | L1.5 | ASTM D-1500 | |
Neutralization No. | mg K01-11g | - | 0.53 | 0.53 | 0.53 | ASTM D-974 | |
Zinc Content | wt. % | 0.022 | 0.022 | 0.022 | 0.022 | ASTM D-4951 | |
Product Code | - | 5110 | 4960 | 5050 | 5060 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur
DESCRIPTION:
ULTRALUBE HYDRAULIC OIL VH (NZ) Series is top tier product with anti-wear properties with high
quality base oils incorporated with special additives that impart superior viscosity / temperature
characteristics. They have a very high viscosity index and low pour points to provide fluidity at
sub-zero temperatures, and they remain suitable for widely varying ambient temperatures. These oils are zinc free hydraulic oils.
APPLICATION:
ULTRALUBE HYDRAULIC OILS VH (NZ) are specially formulated zinc free oils for hydraulic systems which are subjected to extremes of temperature. They are also recommended for most types of hydraulic systems, moderately loaded gears and bearing lubricated by circulation and bath and ring oiling. They are available in a wide range of viscosities to meet a variety of design and operating requirements.
BENEFITS:
.Efficient anti-wear performance and outstanding load carrying capability.
.Excellent water separation and rapid air release without foaming.
.Better filterability.
.Excellent filterability.
.High corrosion resistance.
.Computable with yellow and white metals.
.Increase pump life and reduce maintenance cost.
Performance level:
AGMA ……………………………250.04Product characteristics:
PROPERTIES | Units | Value | Test Method | |||||
ISO Grade | - | 15 | 22 | 32 | 46 | 68 | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.8320 | 0.837 | 0.870 | 0.877 | 0.882 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
15.2 3.84 |
22.5 4.98 |
32.0 6.10 |
46.0 7.84 |
68.2 10.22 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 156 | 154 | 141 | 141 | 135 | ASTM D-2270 | |
Flash Point, COC | °C | 190 | 195 | 200 | 222 | 232 | ASTM D-92 | |
Pour Point | °C | -42 | -39 | -39 | -39 | -36 | ASTM D-97 | |
Color | - | L 0.5 | L 0.5 | L1.0 | 1.0 | 1.5 | ASTM D-1500 | |
Neutralization No. | mg K01-11g | - | - | 0.2 | 0.2 | 0.2 | ASTM D-974 | |
Product Code | - | 4820 | 4830 | 4840 | 4850 | 4860 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occ
DESCRIPTION:
ULTRALUBE TURBINE OIL C Series are Rust and Oxidation inhibited type circulating system oils formulated from premium quality, chemically-stable, high VI base stocks with chemical additives including rust and oxidation inhibitors which provide resistance to thermal degradation.
APPLICATION:
ULTRALUBE TURBINE OIL C are circulating oils suited for lubrication of gears and bearings in a wide variety of machinery application.
BENEFITS:
.Protection against rust and corrosion.
.Good resistance to thermal degradation.
Performance level:
AGMA………………………. 250.04Product characteristics:
PROPERTIES | Units | Value | Test Method | ||||
ISO Grade | - | 150 | 220 | 320 | 460 | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.894 | 0.898 | 0.902 | 0.907 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
149.0 14.5 |
209.6 18.2 |
321.5 24.2 |
441.0 29.8 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 96 | 96 | 96 | 96 | ASTM D-2270 | |
Flash Point, COC | °C | 274 | 284 | 288 | 298 | ASTM D-92 | |
Pour Point | °C | -6 | -6 | -6 | -6 | ASTM D-97 | |
Color | - | 2.5 | 3.0 | 3.0 | L4.5 | ASTM D-1500 | |
Neutralisation No. | mg KOH/g | 0.09 | 0.09 | 0.09 | 0.09 | ASTM D-974 | |
Product Code | 5260 | 5270 | 5280 | 5290 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur
DESCRIPTION:
ULTRALUBE TURBINE OIL SH Series are high quality, inhibited oils. These products are formulated with Group III synthetic base stocks having high VI, which is further enhanced by the addition of oxidation inhibitors for exceptional thermal & oxidation stability, together with specially selected additives that gives effective deposit control & keep the system clean. These inhibitors provide resistance to thermal degradation over long periods of time in the presence of entrained air and catalyzing metals. ULTRALUBE TURBINE OILS (HF) exhibit good demulsibility, permitting water and other contaminants to readily separate from oil in the system reservoir..
APPLICATION:
ULTRALUBE TURBINE OILS (HF) are designed for use in water, steam and gas turbines, bearing lubrication and system cooling where oil requirements include a long operating life and rust protection, good water separation and air release characteristics. They are also suited for high- speed gear units and other applications requiring high quality rust and oxidation inhibited type oils.
BENEFITS:
.Superior oxidation stability
.Effective protection against air entrainment and good air release properties.
.Protection against rust and corrosion over extended periods.
.Efficient demulsibility for rapid separation of water.
Performance level:
BS 489-1999Product characteristics:
PROPERTIES | Units | Value | Test Method | |||
ISO Grade | - | 32 | 46 | 68 | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.851 | 0.854 | 0.856 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
32.1 5.7 |
46.0 7.3 |
68.0 9.4 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 121 | 120 | 117 | ASTM D-2270 | |
Flash Point, COC | °C | 210 | 220 | 215 | ASTM D-92 | |
Pour Point | - | -18 | -15 | -12 | ASTM D-97 | |
Color | - | 0.5 | < 1.0 | < 1.5 | ASTM D-1500 | |
Neutralization No. | mg KOH/g | 0.10 | 0.10 | 0.1 | ASTM D-974 | |
Air Release | @ 50 °C | Minutes | 3 | 4 | 7 | ASTM D-3427 |
Water Content | ppm | < 50 | < 50 | < 50 | ASTM D-1533 | |
Cleanliness Level | - | < 8 | < 8 | < 8 | NAS 1638 | |
Load Carrying capacity | FZG | > 9 | > 9 | > 9 | - | |
Oxidation Stability Hrs to 2.0 Acid Number (min) |
minute | > 10000 | > 10000 | > 10000 | ASTM D-943 | |
Product Code | - | 5210 | 5220 | 5230 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE TURBINE OIL T Series is high-quality inhibited Zinc Free oils. It is formulated from premium quality, chemically stable, high VI base stocks, which are further enhanced by the addition of oxidation inhibitors. These inhibitors provide resistance to thermal degradation over long periods of time in the presence of entrained air and catalyzing metals. ULTRALUBE TURBINE OILS T exhibit good demulsibility, permitting water and other contaminants to readily separate from the oil in the system reservoir.
APPLICATION:
ULTRALUBE TURBINE OIL T Series is suitable for use in water and steam turbines bearing lubrication and cooling which require mineral turbine oils. In additioin, ULTRALUBE TURBINE OILS T promotes outstanding performance in hydraulic systems, gear cases, bearing and otherindustrial units.
BENEFITS:
.Superior oxidation stability
.Effective protection against air entrainment and good air release properties.
.Protection against rust and corrosion over extended periods.
.Efficient demulsibility for rapid separation of water.
Performance level:
BS 489-1999Product characteristics:
PROPERTIES | Units | Value | Test Method | ||||
ISO Grade | - | 32 | 46 | 68 | 100 | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.874 | 0.879 | 0.884 | 0.889 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
31.4 5.4 |
46.4 6.9 |
69.2 8.9 |
99.9 11.3 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 106 | 104 | 102 | 99 | ASTM D-2270 | |
Flash Point, COC | °C | 220 | 242 | 248 | 264 | ASTM D-92 | |
Pour Point | - | -12 | -9 | -9 | -9 | ASTM D-97 | |
Color | - | 1.5 | 1.5 | L 2.0 | 2.5 | ASTM D-1500 | |
Neutralization No. | mg KOH/g | 0.09 | 0.09 | 0.09 | 0.09 | ASTM D-974 | |
Zinc (max) | ppm | 10 | 10 | 10 | 10 | ASTM D-3427 | |
Oxidation Stability Hrs to 2.0 Acid Number (min) |
- | 2800 | 2500 | 2000 | - | ASTM D-943 | |
Product Code | - | 5170 | 5180 | 5190 | 5200 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE TURBINE OILS EP is high-quality rust and oxidation oils with extreme pressure characteristics. They are formulated from premium quality, chemically stable, high VI base stocks, which are further enhanced by the addition of oxidation inhibitors. These inhibitors provide resistance to thermal degradation over long periods of time in the presence of entrained air and catalyzing metals.ULTRALUBE Turbine Oils EP exhibit good demulsibility, permitting water and other contaminants to readily separate from the oil in the system reservoir.
APPLICATION:
ULTRALUBE TURBINE OILS EP are suitable for use in water and steam turbines bearing lubrication and cooling which require mineral group | base oils. In addition, ULTRALUBE TURBINE OILS EP promotes outstanding performance in hydraulic systems, gear cases, bearing and other industrial units.
BENEFITS:
.Excellent water separation.
.The higher FZG ratings fulfills the requirements of geared turbines, which require EP properties
.Very high oxidation stability.
.Long service life.
.Efficient anti-wear performance.
.Effective anti-foam properties.
Performance level:
AGMA 250.04Product characteristics:
PROPERTIES | Units | Value | Test Method | ||||
ISO Grade | - | 32 | 46 | 68 | 100 | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.874 | 0.879 | 0.884 | 0.889 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
31.95 5.4 |
46.03 6.7 |
68.07 8.9 |
100.2 11.3 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 102 | 101 | 100 | 98 | ASTM D-2270 | |
Flash Point, COC | °C | 220 | 238 | 246 | 258 | ASTM D-92 | |
Pour Point | °C | -12 | -9 | -9 | -9 | ASTM D-97 | |
Color | - | 1.5 | 1.5 | L2.0 | 2.5 | ASTM D-1500 | |
FZG test (A/8.3/90), | Fail Load Stage | +11 | +11 | +11 | +11 | DIN 51354 | |
Neutralization No. | mg K01-11g | 0.16 | 0.16 | 0.16 | 0.16 | ASTM D-974 | |
Oxidation Stability Hrs To 2.0 | 3800 | 3200 | 2800 | 2500 | ASTM D-943 | ||
Product Code | 4510 | 4520 | 4530 | 4540 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur
DESCRIPTION:
ULTRALUBE TURBO COMPRESSOR OIL Series is high quality, inhibited oils.These products are formulated with Group III synthetic base Stocks having high VI, further enhanced by the addition of oxidation inhibitors for exceptional thermal & oxidation stability together with specially chosen additives that give effective deposit control & keep the system clean. These inhibitors provideresistance to thermal degradation over long periods in presence of entrained air & catalyzing metals. ULTRALUBE TURBO COMPRESSOR OILS exhibit good demulsibility, permitting water & other contaminants to readily separate from the oil in the system reservoir.
APPLICATION:
ULTRALUBE TURBO COMPRESSOR OIL Series is designed for use in water, steam and gas turbines bearing lubrication where system oil requirements include a long operating life and rust protection, good water separation and air release characteristics. They are also suited for high-speed gear units and other application requiring high quality rust and oxidation inhibited type oils. Recommended as Rust & Oxidation inhibited oils for Turbo compressor lubrication applications.
BENEFITS:
.Excellent oxidation stability.
.Effective protection against air entrainment and good air release properties.
.Protection against rust/corrosion for long periods.
.Efficient demulsibility for rapid separation of water.
Performance level:
BS ………………………. 489-1999Product characteristics:
PROPERTIES | Units | Value | Test Method | ||
ISO Grade | - | 32 | 46 | DIN 51511 | |
Specific Gravity | - | 0.861 | 0.850 | ASTM D-4052 | |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
32.0 5.7 |
45.6 7.20 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 120 | 118 | ASTM D-2270 | |
Flash Point, COC | °C | 210 | 235 | ASTM D-92 | |
Pour Point | - | -12 | -9 | ASTM D-97 | |
Color, ASTM | - | 1.0 | 1.0 | ASTM D-1500 | |
Neutralization No. | mg | 0.10 | 0.10 | ASTM D-2896 | |
Air Release | @ 50 °C | Minutes | 3 | 3.5 | ASTM D-3427 |
Oxidation Stability Hrs to 2.0 Acid Number (min) |
Hours | > 10000 | > 10000 | ASTM D-943 | |
Product Code | - | 5510 | 5520 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE COMPRESSOR OILS SERIES HAS BEEN DEVELOPED TO MEET THE LATEST CHANGES IN AIR COMPRESSOR DESIGNS, RESULTING IN INCREASED CAPACITY AND EFFICIENCY. IT IS FORMULATED FROM A HIGH-GRADE BASE STOCK WITH A NARROW DISTILLATION RANGE, CONTAINING SPECIALLY SELECTED ADDITIVES, WHICH ENHANCE LUBRICITY, ANTI-WEAR PROPERTIES, AND PROTECT COMPRESSOR PARTS AGAINST RUST. IT IS DESIGNED TO LUBRICATE BOTH CYLINDERS AND CRANKCASES. IT MINIMIZES CARBON AND SLUDGE DEPOSITS, THEREBY EXTENDING TIME BETWEEN SERVICE INTERVALS FOR CLEANING VALVES, PORTS AND INTERCOOLERS.
APPLICATION:
ULTRALUBE COMPRESSOR OIL SERIES IS SPECIALLY SUITED FOR SINGLE-STAGE RECIPROCATING COMPRESSORS UP TO 125 PSI, TWO-STAGE RECIPROCATING COMPRESSORS UP TO 300 PSI AND MULTI-STAGE RECIPROCATING COMPRESSORS AFTER BREAK-IN WITH AIR DISCHARGE TEMPERATURE UP TO 220°C.
BENEFITS:
.Very low viscosity variation with temperature.
.High shear stability..
. Oxidation resistant.
.Excellent filterability.
. Efficient anti-wear performance.
. Rust and corrosion protection..
Performance level:
AGMA ……………………………A 250.04Product characteristics:
PROPERTIES | Units | Value | Test Method | ||||
ISO Grade | - | 15 | 32 | 46 | 68 | DIN 51511 | |
Specific Gravity | © 15 °C | - | 0.8320 | 0.871 | 0.876 | 0.882 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
15.2 3.85 |
32.6 6.4 |
44.0 7.90 |
67.3 10.84 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 153 | 152 | 152 | 152 | ASTM D-2270 | |
Flash Point, COC | °C | 185 | 224 | 220 | 226 | ASTM D-92 | |
Pour Point | - | -42 | -39 | -39 | -36 | ASTM D-97 | |
Color | - | 1.0 | 1.0 | L1.5 | L1.5 | ASTM D-1500 | |
Neutralization No. | mg KOH/g | - | 0.53 | 0.53 | 0.53 | - | |
Zinc Content | wt. % | 0.022 | 0.022 | 0.022 | 0.022 | ASTM D-4951 | |
Product Code | - | 5110 | 4960 | 5050 | 5060 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA REFRIGERATION OIL Series is high-quality naphthenic mineral oils blended for lubrication of reciprocating and rotary refrigeration compressors. It has have good oxidation stability, extreme low pour point, good demulsibility and excellent anti foaming properties. It is characterized by a low Freon R-12 Floc point.
APPLICATION:
ULTRALUBE ULTRA SUPER REFRIGERATION OIL Series is suitable for most types of refrigerants (except sulfur dioxide) and in all types of refrigeration systems.ULTRALUBE ULTRA REFRIGERATION OIL Series cover almost the entire range of modern refrigeration compressor requirements down to an operating Evaporation temperature of -62°C.
BENEFITS:
.Effective oxidation resistance.
.Good anti foaming properties.
.Resistance to Wax deposit formation.
.Minimal compressor valve maintenance.
.Sustained high condenser efficiency.
.Sustained high condenser efficiency.
Performance level:
BS ………………………………………2626-1922Product characteristics:
PROPERTIES | Units | Value | Test Method | |||
Category | - | L-32 | LM-46 | HM-68 | DIN 51511 | |
ISO Grade | - | 320 | 46 | 68 | DIN 51511 | |
Specific Gravity | © 15 °C | - | 0.885 | 0.886 | 0.919 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
32.0 4.8 |
46.0 6.1 |
66.0 7.2 |
ASTM D-445 ASTM D-445 |
Flash Point, COC | °C | 175 | 185 | 191 | ASTM D-92 | |
Pour Point | - | -48 | -45 | -42 | ASTM D-97 | |
Color | - | 1.5 | 1.5 | 2.0 | ASTM D-1500 | |
Neutralization No. | mg KOH/g | 0.03 | 0.03 | 0.03 | ASTM D-974 | |
Freon R-12 Floc Point | °C | -60 | -55 | -50 | - | |
Product Code | - | 5281 | 5531 | 5611 | >- |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE TRANSFORMER OIL is un-inhibited highly-refined naphthenic oil specifically manufactured for use in electric transformers and switchgears as an insulating and heat transfer medium
APPLICATION:
ULTRALUBE TRANSFORMER OIL conform to B.S. 148/1984 and IEC Specification 296 (82) and is also used as an insulating and cooling medium where oil of high thermal and oxidation Stability Is required. It is also suitable where good gas absorbing properties are necessary like transformer oil immersed switchgear, circuit breakers etc. TRANSFORMER OIL meets class | and class II of BS 148 and IEC 296 specification.
BENEFITS:
.High dielectric strength.
.Very low pour point.
.Long service life.
.Free from acids and corrosive sulphur.
.Compatible with transformer construction material.
Performance level: Meets IEC……..….. 60296 Former IEC.. . 296 (1982) BS 448 (1984) FORMER CLASS …….. IM
Product characteristics:
PROPERTIES | Units | Value | Test Method | |
Appearance | - | B & C | Visual | |
Specific Gravity | @ 15 °C | - | 0.886 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
9.0 1180 |
ASTM D-445 ASTM D-445 |
Flash Point, COC | °C | 130 | ASTM D-92 | |
Pour Point | °C | -45 | ASTM D-97 | |
Dielectric Dissipation Factor | At 90 °C | < 0.001 | IEC 247 | |
Interfacial Tension | mN/m | 49 | ISO 6295 | |
Dielectric Strength: (Break Down Voltage) |
Before treatment, KV After treatment, KV |
40-60 >70 |
IEC 156 IEC 296 |
|
Oxidation Stability • Neutralization value • Sludge. |
@ 100 °C 164h | mg KOH/g wt% | 0.15 0.02 |
IEC 1125 A ASTM D974 |
Oxidation Stability • Neutralization value • Sludge. |
@ 100 °C 164h | mg KOH/g wt% | 0.26 0.08 |
IEC 1125 A ASTM D974 |
Water Content | ppm | <20 | ASTM D1533 | |
Gassing tendency • Hydrogen |
mm3 / min | < +5 | IEC 628 (A) | |
Product Code | - | 5461 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRA SYNTHETIC TRANSFORMER OIL ULTRALUBE ULTRATHERM is Heat Transfer Oil formulated from premium quality synthetic base oil, intended for use in oil-sealed, closed, open & indirect heat transfer and cooling Systems. It has excellent heat transfer efficiency with better resistance to thermal cracking and chemical oxidation. Posses high specific heat and thermal conductivity at operating temperatures which allows rapid heating & greater system flexibility. Easy pumpability with stable flash point.
APPLICATION:
ULTRALUBE ULTRATHERM heat transfer oil can be used in open & closed system in line with Bulk oil temperature ranges as given in Table.
ULTRALUBE ULTRATHERM heat transfer oil should not be mixed with other oils, as it may weaken the thermal resistance and oxidation stability, which may cause a change in other propetrties, and effect the Oil’s useful life.
BENEFITS:
.Provides significant resistance to thermal cracking and chemical decomposition ensuring less sludge formation & coke deposits,
resulting in minimum interference with heat transfer ability.
Thus reducing equipment down time.
.Long service life with minimum deposit formation or viscosity increase.
.Less acidity compare to convential heat transfer oil.
.Provides good low temperature fluidity.
.High heat transfer rates reducing operating cost
.Protects against corrosion.
.Flexible for combined heating and cooling cycles.
Product characteristics:
PROPERTIES | Units | Value | Test Method | |||
ISO Grade | - | 32 | 46 | 68 | DIN 51511 | |
Specific Gravity | © 15 °C | - | 0.851 | 0.854 | 0.856 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
32.1 5.7 |
45.3 7.1 |
67.5 9.4 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 120 | 119 | 117 | ASTM D-2270 | |
Flash Point | °C | 230 | 236 | 242 | ASTM D-92 | |
Pour Point | - | -15 | -12 | -9 | ASTM D-97 | |
Neutralization No. | mg KOH/g | <0.01 | <0.01 | <0.01 | ASTM D-974 | |
Color | - | < 0.5 | < 0.5 | < 0.5 | ASTM D-1500 | |
Bulk Oil Temperature Open System Close System |
°C °C |
-15 to 200 -15 to 325 |
-12 to 210 -12 to 330 |
-9 to 220 -9 to 340 |
- - |
|
Product Code | - | 5281 | 5531 | 5611 | >- |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA CYLINDER OIL is a premium quality, straight mineral Oil with low Carbon residue made from thermally-stable base stocks selected and processed for the adverse operating conditions in steam cylinders either using dry or wet steam with low water content..
ULTRALUBE ULTRA CYLINDER OIL is heavy-bodied lubricating oil compounded to augment its film-forming characteristics under normal to heavy load conditions. It has the capability to resist the washing effect of moisture and maintain adequate lubricating and sealing films in steam cylinders.
APPLICATION:
ULTRALUBE ULTRA CYLINDER OIL is designed for low speed, moderately loaded gears and low speed or high temperature bearings under moderate load. Also used in steam cylinder and valve lubrication with dry steam or wet steam with low water content
BENEFITS:
.Lubricates even under wet & moist conditions.
.Excellent demulsibility.
.High chemical stability and excellent lubricity.
.High chemical stability and excellent lubricity.
.Significant resistance to oxidation and foaming.
Product characteristics:
PROPERTIES | Units | Value | Test Method | ||
ISO Grade | - | 320 | 1000 | DIN 51511 | |
Specific Gravity | © 15 °C | - | 0.910 | 0.918 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
321.5 24.0 |
1005 49.9 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 95 | 95 | ASTM D-2270 | |
Flash Point, COC | °C | 280 | 305 | ASTM D-92 | |
Pour Point | - | -9 | 0 | ASTM D-97 | |
Color | - | 4.0 | D 8.0 | ASTM D-1500 | |
Product Code | - | 4480 | 4490 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE CYLINDER OIL IS PREMIUM QUALITY COMPOUNDED STEAM CYLINDER OIL, FORMULATED FROM THERMALLY-STABLE BASE STOCKS SELECTED AND PROCESSED FOR THE ADVERSE OPERATING CONDITIONS IN STEAM CYLINDERS.
ULTRALUBE CYLINDER OIL sIS HEAVY-BODIED LUBRICATING OIL MADE TO AUGMENT ITS FILM-FORMING CHARACTERISTICS UNDER NORMAL TO HEAVY LOAD CONDITIONS. IT HAS THE CAPABILITY TO RESIST THE WASHING EFFECT OF MOISTURE AND MAINTAIN ADEQUATE LUBRICATING AND SEALING FILMS IN STEAM CYLINDERS.
APPLICATION:
ULTRALUBE CYLINDER OIL IS DESIGNED FOR LUBRICATING STEAM CYLINDERS, COUPLINGS AND BEARINGS. IT IS ALSO RECOMMENDED FOR USE IN SPLASH-LUBRICATED ENCLOSED WORM GEAR SETS OPERATING AT MODERATE TO HIGH SPEED AND TEMPERATURE. ALSO FOR USE IN LOW SPEED HEAVILY LOADED SPUR AND HELICAL GEAR AND IN LOW SPEED / HIGH TEMPERATURE BEARINGS.
BENEFITS:
.LUBRICATES EVEN UNDER WET & MOIST CONDITIONS.
.HIGH CHEMICAL STABILITY AND EXCELLENT LUBRICITY.
.EFFECTIVE PROTECTION AGAINST RUST AND CORROSION.
.SIGNIFICANT RESISTANCE TO OXIDATION AND FOAM.
.TENACIOUS LUBRICATING OIL FILM TO SUSTAIN HEAVY STEAM WASHING CONDITIONS.
Product characteristics:
PROPERTIES | Units | Value | The Method | |||
ISO Grade | - | 460 | 680 | 1000 | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.910 | 0.913 | 0.918 | ASTM D-4052 |
Viscosity | @40°C @100°C |
mm2/s mm2/s |
464.0 32.0 |
681.0 39.1 |
1002 49.8 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 100 | 95 | 95 | ASTM D-2270 | |
Flash Point, COC | °C | 289 | 292 | 305 | ASTM D-92 | |
Pour Point | °C | -9 | -3 | 0 | ASTM D-97 | |
Color | - | 5.0 | 6.0 | D 7.0 | ASTM D-1500 | |
Product Code | - | 5550 | 4460 | 4470 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ROCK DRILL OIL Series is heavy-duty oil formulated exclusively for lubrication of pneumatic rock drills in mining and construction operations. It is formulated from a combination of base stocks and special additives selected to provide improved performance in all types of pneumatic rock drills. All grades exhibit high film strength to minimize wear at low feed rates. Additionally, it contains additives, which effectively control emulsions, provide effective metal wetting properties, and excellent rust and corrosion protection of internal parts.
APPLICATION:
ULTRALUBE ROCK DRILL OIL Series is recommended for all pneumatically operated rock drills, particularly those requiring heavy duty oils, and including those in which the rotation of the drill is independent of the percussion mechanism, utilizing a separate hydraulic or pneumatic motor with reduction gearing for rotation. The oils may be applied by hand or integral oil reservoirs through air lines.
BENEFITS:
.High film strength minimizes wear.
.Effective lubricity reduces friction.
.Effective lubrication in the presence of water.
.Efficient rust and corrosion protection.
.Minimum fog formation.
.Good thermal and oxidation stability.
Product characteristics:
PROPERTIES | Units | Value | Test Method | ||||
Classification | - | B | C | D | E | - | |
ISO Grade | - | 100 | 150 | 220 | 320 | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.891 | 0.889 | 0.898 | 0.904 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
100.0 11.43 |
150.0 14.9 |
220.0 18.8 |
320.0 24.2 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 101 | 98 | 96 | 96 | ASTM D-2270 | |
Flash Point, COC | °C | 225 | 250 | 252 | 252 | ASTM D-92 | |
Pour Point | °C | -9 | -9 | -9 | -9 | ASTM D-97 | |
Color | - | 2.0 | 2.5 | 2.5 | L 3.0 | ASTM D-1500 | |
Rust Test | - | Pass | Pass | Pass | Pass | ASTM D-974 | |
Product Code | - | 5490 | 5480 | 4440 | 4450 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE QUENCHING OIL is blended from highly refined solvent-treated mineral base oils. It is suitable as high quality heat treatment oil for general-purpose use as well as quenching non-critical components. Suitable for use as quenching oil at temperatures from ambient to about 90 °C. Series is high quality, solvent-refined paraffin oils containing no additives.
APPLICATION:
ULTRALUBE QUENCHING OIL is high-quality general-purpose heat treatment and quenching oil. It is recommended for use where maximum hardness is not required.
BENEFITS:
.Efficient hardening characteristics.
.High oxidation stability.
.Long service life.
.High flash point minimizes fire hazards and reduces smoke..
.Can easily be removed from quenched parts.
Product characteristics:
PROPERTIES | Units | Value | Test Method | |
ISO Grade | - | 22 | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.864 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
21.0 4.2 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 100 | ASTM D-2270 | |
Flash Point, COC | °C | 209 | ASTM D-92 | |
Pour Point | °C | -18 | ASTM D-97 | |
Color | 0.5 | ASTM D-1500 | ||
Color | °C | 240 | ASTM D-1500 | |
Product Code | - | 5420 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE INDUSTRIAL OIL Series is high quality solvent refined paraffin oils containing no additives. INDUSTRIAL Oils possess inherent oxidation stability.
APPLICATION:
ULTRALUBE INDUSTRIAL Oil Series is suitable for bearing and gear lubrication systems where
the operating conditions are not severe. Recommended for use in re-circulating and other closed
oil systems. Suitable for rubber processing industry.
BENEFITS:
.Inherent oxidation stability.
.Low volatility.
Product characteristics:
PROPERTIES | Units | Value | Test Method | ||||||||
ISO Grade | - | 32 | 46 | 68 | 100 | 150 | 220 | 320 | 460 | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.874 | 0.879 | 0.883 | 0.888 | 0.893 | 0.882 | 0.904 | 0.908 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
33.0 5.5 |
46.0 6.8 |
68.0 8.7 |
100.0 11.3 |
150.0 14.6 |
220.0 18.8 |
320.0 24.2 |
460.0 30.4 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 103 | 103 | 99 | 98 | 96 | 96 | 96 | 95 | ASTM D-2270 | |
Flash Point, COC | °C | 225 | 235 | 239 | 248 | 250 | 252 | 260 | 270 | ASTM D-92 | |
Pour Point | °C | -12 | -12 | -12 | -12 | -9 | -9 | -9 | -9 | ASTM D-97 | |
Color | 1.0 | L1.5 | 1.5 | 2.0 | L2.5 | 2.5 | L3.0 | 3.0 | ASTM D-1500 | ||
Product Code | - | 3210 | 3220 | 3230 | 3240 | 3250 | 3260 | - | 3280 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE PROCESS OIL Series is high quality, solvent-refined paraffin oils containing no additives. ULTRALUBE Process Oils possess inherent oxidation stability.
APPLICATION:
ULTRALUBE PROCESS OIL Series is suitable for bearing and gear lubrication systems where the operating conditions are not severe. Recommended for use in re-circulating and other closed oil systems. Mostly used as carrier oils in process industries such as rubber processing.
BENEFITS:
.Inherent oxidation stability.
.Low volatility.
Product characteristics:
PROPERTIES | Units | Value | Test Method | |||
ISO Grade | - | 22 | 32 | 460 | DIN 51511 | |
Specific Gravity | @ 15 °C | - | 0.863 | 0.874 | 0.907 | ASTM D-4052 |
Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
22.0 4.3 |
32.0 5.5 |
460.0 30.4 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 101 | 99 | 95 | ASTM D-2270 | |
Flash Point, COC | °C | 218 | 230 | 282 | ASTM D-92 | |
Pour Point | °C | -18 | -12 | -9 | ASTM D-97 | |
Color | 0.5 | 2.0 | 5.0 | ASTM D-1500 | ||
Product Code | - | 5590 | 5560 | 5580 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
GREASE
BLACK MB GREASE
DESCRIPTION:
ULTRALUBE BLACK MP GREASE is multi-purpose covering a wide variety of moderate service applications. It is formulated with lithium 12-hydroxy stearate soap base and solvant-refined high-viscosity index mineral base oils to act as the lubricant. It contains graphite antioxidants and can with stand oil separation. The graphite provides mild EP characteristics. It also performs under moderate to high loads.
APPLICATION:
ULTRALUBE BLACK MP GREASE is recommended for the lubrication of automotive chassis fittings and bearings and for general industrial lubrication where service conditions are moderate to heavy, It may be used in passenger cars, vans, trucks, farm tractors and general industrial equipment, machine tools and home appliances.
BENEFITS:
.Good lubrication under moderate to heavy shock loading
.Long service life
.Resistance to water washing in moderate Conditions.
.Good dispensing characteristics.
.Mild EP characteristic
Product characteristics:
PROPERTIES | Units | Value | Test Method | |
NLGI Grade | - | 3 | - | |
Color | - | Brown Black | Visual | |
Texture | - | Smooth | Visual | |
Mineral Oil Viscosity | @ 40°C @ 100°C |
mm2/s
mm2/s |
200.0 17.5 |
ASTM D-445 ASTM D-445 |
Dropping Point (min) | °C | 195 | ASTM D-2265 | |
Worked Penetration at 25°C | mm/10 | 220/250 | ASTM D-217v | |
Oil Separation, mass % (max) | % mass | 5.0 | ASTM D-1742 | |
Operating Temp | °C | -10 to 120 | - | |
Product Code | - | 0100 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE HIGH TEMP GREASE is formulated with an inorganic thickener and highly refined base oil. It contains EP agent and rust inhibitors.ULTRALUBE HIGH TEMP GREASE possesses resistance to water washing and provides effective protection against rust and corrosion for both ferrous and non-ferrous metals
APPLICATION:
ULTRALUBE HIGH TEMP GREASE is recommended for applications where continuous high temperatures or intermittent very high temperatures are experienced. The maximum usable temperature for Hi-Temp Grease for extended service is 200 °C.
ULTRALUBE HIGH TEMP GREASE is recommended for application such as furnace door bearings and kiln car wheel bearings and for general industrial lubrication where non-melting grease is required. It can also be used in ambient temperature applications such as roll neck bearings where high resistance to water washing is needed.
BENEFITS:
.Thickener does not melt, extremely high dropping point.
.Will not soften and leak from bearings exposed to high temperature.
.Resistance to water washing, steam and humid conditions.
.Consistency maintained despite cycling temperature conditions.
.Good pumpability.
.Molybdenum enhanced EP characteristics.
Product characteristics:
PROPERTIES | Units | Value | Test Method | |
NLGI Grade | - | 2 | - | |
Color | - | Grey Black | Visual | |
Texture | - | Smooth | Visual | |
Thickner Type | - | Bentonite | - | |
Mineral Oil Viscosity | @ 100°C | mm2/s | 25.0 | ASTM D-445 |
Dropping Point (min) | °C | > 300 | ASTM D-2265 | |
Rust Test | - | Pass | ASTM D-2265 | |
Timken OK Load | kg | > 40 | ASTM D-2509 | |
Dielectric Dissipation Factor | At 90 °C | < 0.001 | IEC 247 | |
Worked Penetration at 25 °C | mm/10 | 255/295 | ASTM D-217 | |
Oil Separation, mass % (max) | % mass | <1 | ASTM D-1742 | |
Operating Temp | °C °C |
Stationary Sys max 200 Circulation Sys max 275 |
- - |
|
MoS, | % mass | 0.25 | ASTM D-4951 | |
Product Code | - | 0170 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA EP GREASE series is extreme pressure lithium soap grease, which contains oxidation, rust and corrosion inhibitors and provides excellent EP properties. The use of a lithium soap base ensures effective resistance to softening under severe working conditions, efficient water resistance and a consistency, which remains relatively constant over the recommended range of operating temperatures. Petromin EP Grease is non-corrosive to both steel and copper. The later is of importance because of the use of bronze cages in many anti-friction bearings. The grease exhibits effective resistance to bleeding and superior resistance to water washout.
APPLICATION:
ULTRALUBE ULTRA EP GREASE is recommended for lubrication of plain and rolling element bearings in normal through heavy-duty industrial applications. It is are suitable where loads are high or shock loads are present. It resists water washing and provide rust protection for bearings if water is present. The softer grades are particularly suitable for use in centralized lubrication systems. Can be used for both automotive and industrial applications.
BENEFITS:
.Superior lubrication under heavy and shock loading.
.Excellent load carrying ability.
.Excellent resistance to water washing.
.Effective rust protection and corrosion resistance.
Product characteristics:
PROPERTIES | Units | Value | Test Method | |||||
NLGI Grade | - | 00 | 0 | 1 | 2 | 3 | - | |
Color | - | Dark Brown | Visual | |||||
Texture | - | SF | Smooth | ASTM D-2270 | ||||
Thickner Type | - | Lithium | - | |||||
Mineral Oil Viscosity | @40°C @100°C |
mm2/s mms2/s |
200.0 17.5 |
200.0 17.5 |
200.0 17.5 |
200.0 17.5 |
200.0 17.5 |
ASTMD-445 ASTMD-445 |
Dropping Point (min) | °C | 170 | 180 | 185 | 195 | 195 | ASTM D-2265 | |
Worked Penetration at25 °C | mm/10 | 400/430 | 355/385 | 310/340 | 265/295 | 220/250 | ASTM D-217 | |
Oil Separation, mass % (max) | % mass | - | - | - | 5.0 | 5.0 | ASTM D-1742 | |
Operating Temp °C | -10 to 130 - | |||||||
Rust Test | - | Pass | Pass | Pass | Pass | |||
Product Code | - | 0160 | 0480 | 0140 | 0150 | 0470 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA EP LEATHCOMPLEX is a premium, Lithium Complex industrial and automotive lubricating grease for plain and anti-friction bearings. Available in NLGI grades 2 and 3, LITHCOMP EP is shear and oxidation stable, provides protection against rust and oxidation while resisting softening at higher temperatures.
APPLICATION:
ULTRALUBE ULTRA EP LEATHCOMPLEX grease is primarily designed for the lubrication of steel roll mill bearings. This grease is ideal for the lubrication of bearings used in industry under high operating temperatures. Operating temperatures can vary between -20 °C to +180 °C. For operating temperatures above 160 °C the grease has to be frequently replenished.
ULTRALUBE ULTRA EP LEATHCOMPLEX grease can be used in automotive wheel bearings of vehicles subjected to occasional high temperature as may occur in vehicles with disc brakes.
BENEFITS:
.Longer life at higher temperatures.
.Shear and oxidation stable.
.Excellent wear protection.
.Resists softening at elevated temperatures.
.Wide application range.
Product characteristics:
PROPERTIES | Units | Value | Test Method | |
NLGI Grade | - | 2 | 3 | - |
Color | - | Light Blue | Light Blue | Visual |
Texture | - | Smooth | Smooth | Visual |
Thickner Type | - | Lithium Complex | Lithium Complex | - |
Mineral Oil Viscosity | @ 100°C | mm2/s | 25.0 | ASTM D-445 |
Dropping Point (min) | °C | 280 | 285 | ASTM D-2265 |
Timken OK Load | kg | 18 | 18 A | ASTM D-2509 |
Worked Penetration at 25 °C | mm/10 | 265/295 | 220/250 | ASTM D-217 |
Oil Separation, mass % (max) | % mass | 3.0 | 3.0 | ASTM D-1742 |
Operating Temp | °C | 20 to +180 | - - |
|
Rust Test | - | Pass | Pass | ASTM D-2265 |
Product Code | - | 0060 | 0102 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA GP GREASE is lithium soap, general-purpose greases specifically formulated to provide effective oxidation resistance, rust and corrosion protection. The use of Lithium soap in these greases provide excellent structural stability throughout their recommended temperature range. They possess high chemical stability and resistance to thermal breakdown and deterioration. They also resist water washing. They contain special type of polymer to withstand oil separation.
APPLICATION:
ULTRALUBE ULTRA GP GREASE is recommended for lubrication of rolling element and needle bearings.
ULTRALUBE ULTRA GP GREASE The heavier consistency is preferred for vertical shaft and outer race rotating applications. They are suitable for use under either wet or dry conditions. These products are also recommended for the lubrication of plain bearings, cams, ways and other sliding parts when loads are normal and no shock loads are experienced. They may also be used in moderate automotive wheel bearing and chassis service.
BENEFITS:
.Wide range of usable temperatures.
. Protection against rust and corrosion.
.Resistance to water-washing and wet conditions.
.Good dispensing characteristics.
.General-purpose capability reduces plant inventory of greases.
Product characteristics:
PROPERTIES | Units | Value | Test Method | ||
NLGI Grade | - | 2 | 3 | - | |
Color | - | Light Blue | Light Blue | Visual | |
Texture | - | Smooth | Smooth | Visual | |
Thickner Type | - | Lithium | Lithium | - | |
Mineral Oil Viscosity | @40°C @100°C |
mm2/s mm2/s |
200.0 17.5 |
200.0 17.5 |
ASTM D-445 ASTM D-445 |
Dropping Point (min) | °C | 190 | 195 | ASTM D-2265 | |
Worked Penetration at 25 °C | mm/10 | 265/295 | 220/250 | ASTM D-217 | |
Oil Separation, mass % (max) | % mass | 5.0 | 5.0 | ASTM D-1742 | |
Operating Temp | °C | -10 to 130 | - - |
||
Rust Test | - | Pass | Pass | ASTM D-2265 | |
Product Code | - | 0120 | 0130 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA GP GREASE is lithium soap, general-purpose greases specifically formulated to provide effective oxidation resistance, rust and corrosion protection. The use of Lithium soap in these greases provide excellent structural stability throughout their recommended temperature range. They possess high chemical stability and resistance to thermal breakdown and deterioration. They also resist water washing. They contain special type of polymer to withstand oil separation.
APPLICATION:
ULTRALUBE ULTRA GP GREASE is recommended for lubrication of rolling element and needle bearings. The heavier consistency is preferred for vertical shaft and outer race rotating applications. They are suitable for use under either wet or dry conditions. These products are also recommended for the lubrication of plain bearings, cams, ways and other sliding parts when loads are normal and no shock loads are experienced. They may also be used in moderate automotive wheel bearing and chassis service.
BENEFITS:
.Wide range of usable temperatures.
.Protection against rust and corrosion.
.Resistance to water-washing and wet conditions.
.Good dispensing characteristics.
.General-purpose capability reduces plant inventory of greases.
Product characteristics:
PROPERTIES | Units | Value | Test Method |
NLGI Grade | - | 2 | - |
Color | - | Grey Black | Visual |
Texture | - | Smooth | Visual |
Thickner Type | - | Bentonite | - |
Mineral Oil Viscosity @100°C | mm/s | 25.0 | ASTM D-445 |
Dropping Point (min) | °C | 300 | ASTM D-2265 |
Timken OK Load | kg | 40 | ASTM D-2509 |
Worked Penetration at 25 °C | mm/10 | 255/295 | ASTM D-217 |
Oil Separation, mass % (max) | % mass | <1 | ASTM D-1742 |
Operating Temp | °C C |
Stationary Sys max 200 Circulation Sys max 275 |
- - |
Mos, | % mass | 2.0 | ASTM D-4951 |
Product Code | - | 0180 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA MP GREASE is multi-purpose covering a wide variety of moderate service applications. It is formulated with a lithium 12-hydroxy stearate soap base and solvent-refined high-viscosity index mineral base oils to act as the lubricant. It contains special chemical additives, which enhanced oxidation resistance and special type of polymer to withstand oil separation.
APPLICATION:
ULTRALUBE ULTRA MP GREASE is recommended for the lubrication of automotive chassis fittings and bearings and for general industrial lubrication where service conditions are moderate. It may be used in passenger cars, vans, trucks, farm tractors and general industrial equipment, machine tools and home appliances.
BENEFITS:
.Long service life.
.Resistance to water washing in moderate conditions.
.Good dispensing characteristics.
Product characteristics:
PROPERTIES | Units | Value | Test Method | ||
NLGI Grade | - | 2 | 3 | - | |
Color | - | Light Brown | Light Brown | Visual | |
Texture | - | Smooth | Smooth | Visual | |
Thickner Type | - | Lithium | Lithium | - | |
Mineral Oil Viscosity | @40°C @100°C |
mm2/s mm2/s |
200.0 17.5 |
200.0 17.5 |
ASTM D-445 ASTM D-445 |
Dropping Point (min) | °C | 190 | 195 | ASTM D-2265 | |
Worked Penetration at 25 °C | mm/10 | 266/295 | 220/250 | ASTM D-217 | |
Oil Separation, mass % (max) | % mass | 5 | 5 | ASTM D-1742 | |
Operating Temp | °C | -10 to 120 - | - - |
||
Product Code | - | 0010 | 0070 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRAMOLY GREASE is formulated with a lithium 12-hydroxy stearate soap thickener and solvent-refined high-viscosity index mineral base oil to act as the lubricant. It contains special chemical additives, that enhance oxidation resistance and rust protection and provide extreme pressure protection. ULTRALUBE ULTRAMOLY GREASE contains micronised molybdenum disulfide (MoS2). This grease forms an adhering film on metallic surfaces to provide additional protection against scoring. This makes the grease especially suitable for equipment operating under slow speed-high load conditions. The use of Lithium 12-hydroxy stearate as the soap base ensures effective resistance against softening under severe working conditions, good water resistance and consistency, which remains relatively constant over the recommended operating temperature range.
APPLICATION:
ULTRALUBE ULTRAMOLY GREASE is recommended for automotive and industrial applications where equipment is highly loaded and operates at slow speed. Good for automotive chassis and bearing applications in cars, vans, trucks, mining and construction vehicles, and tractors, especially those operating in dusty or wet areas.
BENEFITS:
.Excellent wear protection.
.Excellent load carrying ability
.Effective retention under shock load conditions.
.Long service life.
.Resistant to water washing.
.Good dispensing characteristics
Product characteristics:
PROPERTIES | Units | Value | Test Method | |
NLGI Grade | - | 2 | - | |
Color | - | Grey Black | Visual | |
Texture | - | Smooth | Visual | |
Thickner Type | - | Lithium | - | |
Mineral Oil Viscosity | @ 40°C @100°C |
mm2/s mm2/s |
200.0 17.5 |
ASTM D-445 ASTM D-445 |
Dropping Point (min) | °C | 190 | ASTM D-2265 | |
Timken OK Load | kg | 18 | ASTM D-2509 | |
Worked Penetration at 25 °C | mm2/10 | 220/250 | ASTM D-217 | |
Oil Separation, mass % (max) | % mass | 5.0 | ASTM D-1742 | |
Operating Temp | - | °C- | 10 to 140 - | - - |
Mos, | % mass | 2.0 | ASTM D-4951 | |
Product Code | - | 0020 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE VH MP GREASE is chemically stable and neutral grease to Aluminium, zinc and steel. It is formulated with a lithium 12-hydroxy stearate soap base and solvent-refined high- viscosity index mineral base oils to act as the lubricant and to protect the layers of conductor against corrosion for the conductor’s entire service life. It contains special chemical additives, which enhance oxidation resistance and contains high percentage of soap while comparing to normal General or multipurpose greases.
APPLICATION:
ULTRALUBE VH MP GREASE is recommended for the l ubrication of coductors and wires of following category:
.Hard drawn aluminium wires
.Zinc Coated Steel wires
.Aluminium Clad steel wires
.Aluminium-Magnessioum-silicon alloy wires
BENEFITS:
.Long service life.
.Resistance to water washing in moderate conditions.
.Good stability to hold oil content.
.Long service life.
.Protect surface of the wire and is non-corrosive
.Excellent Drop point stability for a longer usage
.Wide ambient temperature stability (The grease shall remain to have its plasticity down to -20 °C to a very hot ambient temperature as its drop point is > 200 °C
Product characteristics:
PROPERTIES | Units | Value | Test Method | |
NLGI Grade | - | 3 | - | |
Color | - | Light Brown | Visual | |
Texture | - | Smooth | Visual | |
Thickner Type | - | Lithium | - | |
Mineral Oil Viscosity | @ 40°C @100°C |
cSt cSt |
200.0 17.5 |
ASTM D-445 ASTM D-445 |
Acid Number | Mg KOH/gm | Report | ISO 6618 | |
Dropping Point | °C | 209 | ASTM D-2265 | |
Worked Penetration at 25 °C | mm/10 | 220/250 | ASTM D-217 | |
Oil Separation | Wt. % | 0.5 max. | ASTM D-1742 | |
Product Code | - | 0090 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ZF GP GREASE is a Zinc Free with lithium soap base. It is a general-purpose greases specifically formulated to provide effective oxidation resistance, rust and corrosion protection. The use of lithium soap in this grease provides excellent structural stability throughout their recommended temperature range. It possess high chemical stability and resistance to thermal breakdown and deterioration. It also resists water washing. It contains special type of polymer to withstand oil separation.
APPLICATION:
ULTRALUBE ZF GP GREASE is recommended for lubrication of rolling element and needle bearings. The heavier consistency is preferred for vertical shaft and outer race rotating applications. This is suitable for use under either wet or dry conditions. This product is also recommended for the lubrication of plain bearings, cams, ways and other sliding parts when loads are normal and no shock loads are experienced. They may also be used in moderate automotive wheel bearing and chassis service.
BENEFITS:
.Wide range of usable temperatures.
.Protection against rust and corrosion.
.Resistance to water-washing and wet conditions.
.Good dispensing characteristics.
.General-purpose capability reduces plant inventory of greases.
Product characteristics:
PROPERTIES | Units | Value | Test Method | |
NLGI Grade | - | 3 | - | |
Color | - | Light Blue | Visual | |
Texture | - | Smooth | Visual | |
Thickner Type | - | Lithium | - | |
Mineral Oil Viscosity | @ 40°C @100°C |
cSt cSt |
200.0 17.5 |
ASTM D-445 ASTM D-445 |
Dropping Point (min) | °C | 200 | ASTM D-2265 | |
Penetration at 25 °C | mm2/10 | 220/250 | ASTM D-217 | |
Oil Separation, mass % (max) | % mass | 5.0 | ASTM D-1742 | |
Operating Temp | °C | -10 to 130 - | ||
Rust Test | - | Pass | ASTM D-1743 | |
Product Code | - | 0136 | - |
*The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
VARIED PRODUCTS
ULTRABOARDDESCRIPTION:
ULTRALUBE ULTRABOARD 2-S Engine Oil is blended for two-stroke water or air-cooled outboard gasoline engines. It is inhibited with ashless detergent additives and diluents to provide easier mixing with the fuel.
APPLICATION:
ULTRALUBE ULTRABOARD It is recommended for high output two-stroke water or air cooled gasoline engines. It should be added with the gasoline in the ratio as recommended by the equipment manufacturer. Not recommended for use in four-stroke engines.
BENEFITS:
.Controls combustion chamber and spark plug deposits build-up. .Excellent miscibility with gasoline. .Keeps pistons, rings, plugs and exhaust ports clean. .Resistance to low temperature gel formation. .Protects against rust by fresh or salt water.Performance level:
NMMA ………………………….. TC W3
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | 30 | 40 | 50 | - | ||
Specific Gravity | @ 15°C | - | 0.875 | ASTM D-4052 | ||
Viscosity | @40 °C @ 100°C |
mm2/s mm2/s |
47.0 7.40 |
ASTM D-445 ASTM D-445 |
||
Viscosity Index | - | 100 | 104 | 97 | ASTM D-2270 | |
Flash Point, COC | °C | 132 | ASTM D-92 | |||
Pour Point | °C | -27 | ASTM D-97 | |||
Sulphated Ash | wt % | 0.039 | ASTM D-874 | |||
Color | - | Blue | Visual | |||
Product Code | - | 1190 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE SUPERBOARD 2-S Engine Oil is ashless two-stroke engine oil formulated to meet the requirements of high-performance two stroke gasoline engines. It is pre-diluted to provide easier mixing with fuel and control spark plug fouling and combustion chamber deposit build-up..
APPLICATION:
ULTRALUBE SUPERBOARD 2-S Engine Oil It is recommended for high output two-stroke gasoline engines as well as for smaller engines fitted in scooters, motorcycles, lawnmovers, chainsaws, and other small equipment. It should be added with the gasoline in the ratio as recommended by the equipment manufacturer.
BENEFITS:
.Controls combustion chamber and spark plug deposits build-up.
.Excellent miscibility with gasoline.
.Keeps pistons, rings, plugs and exhaust ports clean.
.Resistance to low temperature gel formation.
Performance level:
NMMA (BIA)............... TC WII
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
Specific Gravity | @ 15°C | - | 0.880 | ASTM D-4052 | ||
Viscosity | @ 40 °C @ 100 °C |
mm2/s mm2/s |
15.2 3.85 |
22 4.3 |
34.7 5.7 |
ASTM D-445 ASTM D-445 |
Flash Point, COC | °C | 138 | ASTM D-92 | |||
Pour Point | °C | -30 | ASTM D-97 | |||
Sulphated Ash | % wt. | 0.016 | ASTM D-874 | |||
Color | - | Blue | Visual | |||
Product Code | - | 1160 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA POWER – 15 Series is high performance Trunk Piston Engine Oils for medium speed marine and industrial type trunk piston engines operating on low sulphur distillate fuels (Sulphur up to 1.0 %). They are blended using solvent-refined high viscosity index paraffin mineral base oils with chemical additive which provide effective alkalinity, wear resistance, detergent/dispersant and water separating properties.
APPLICATION:
ULTRALUBE ULTRA POWER – 15 OIL Series is recommended for crankcase lubrication in medium-speed marine type diesel engines. They can also be used to separate bearing lubrication and piston cooling of large crosshead type engines under severe service conditions at appropriate viscosity grades. Meets the requirement of WARTSILA, CATERPILLER (3600 SERIES), MTU,MWM, RUSTON, MAN (B&W), BLACKSTONE AND COCKERILL engine builders.
BENEFITS:
.Controls combustion chamber and spark plug deposits build-up.
.Improved anti wear properties, reduces ring & liner wear.
.Reduces port and under crown deposits.
.Cleaner engine operation.
.Increased protection against cylinder and bearing wear.
.Outstanding thermal & oxidation stability extend periods between inspection & overhauling.
.Controls black sludge deposits thus increasing oil filter life and reduces cleaning frequencies.
.Excellent TBN retention with low oil consumption.
Performance level:
API .................. CF,
MAN B&W
MITSUBISHI HEAVY INDUSTRIES (MHI)
WARTSILA NSD
CATERPILLAR
DEUTZ
BLACKSTONE
RUSTON.
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | 30 | 40 | 50 | - | ||
Specific Gravity | @ 15°C | - | 0.900 | 0.903 | 0.908 | ASTM D-4052 |
Viscosity | @40 °C @ 100°C |
mm2/s mm2/s |
108.0 11.9 |
148.0 15.0 |
227.0 19.8 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 99 | 101 | 100 | ASTM D-2270 | |
Flash Point, COC | °C | 240 | 262 | 265 | ASTM D-92 | |
Pour Point | °C | -9 | -9 | -9 | ASTM D-97 | |
Base Number | mg KOH/g | 15.0 | 15.0 | 15.0 | ASTM D-2896 | |
Sulphated Ash | wt % | 1.82 | 1.82 | 1.82 | ASTM D-874 | |
FZG Load carrying capacity, | ||||||
failure stage | - | 12 | 12 | 12 | - | |
Color | - | 6.5 | L7.5 | 8.0 | ASTM D-1500 | |
Product Code | - | 2600 | 2610 | 2620 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA POWER – 30 is Trunk Piston Engine Oil Series for crankcase lubrication requirements of high-output medium speed engines and other similar marine type application. They are formulated from solvent-refined paraffin thermally stable base oils, combined with an effective additive package providing enhanced load-carrying ability, efficient oxidation stability and effective dispersancy/detergency. They provide effective acid neutralization and alkalinity retention in service, even when high-sulphur fuel is used. They are capable to handle heavy residual fuels with high asphalt content.
APPLICATION:
ULTRALUBE ULTRA POWER – 30 OIL Series is primarily recommended for use in high-output trunk piston marine diesel engines operating on heavy residual fuels (sulphur upto 2.0%). They are suitable for four-stroke high BMEP medium speed diesel engines. Meets the requirement of WARTSILA, MAN (B&W), KHD-DEUTZ, PIELSTICK, NIGATA, MAK, YANMAR, DAIHATSU, MIRLESS BLACKSTONE and COCKERILL engine builders.
BENEFITS:
.Excellent TBN retention, with low oil consumption.
.Cleaner piston, ports and cylinders, thus extending overhauls.
.Fast separation from water in case of water contamination.
.Low piston under crown deposits.
.Controls sludge formation, thus increasing oil filter life and reduces cleaning frequencies.
Performance level:
AP ...........................CF
MAN B&W, MITSUBISHI HEAVY INDUSTRIES (MHI), WARTSILA NSD
CATERPILLAR, DEUTZ, BLACKSTONE, RUSTON.
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | 30 | 40 | 50 | - | ||
Specific Gravity | @ 15°C | - | 0.980 | 0.910 | 0.916 | ASTM D-4052 |
Viscosity | @40 °C @ 100°C |
mm2/s mm2/s |
106.0 11.8 |
146.0 15.0 |
226.0 19.9 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 99 | 103 | 101 | ASTM D-2270 | |
Flash Point, COC | °C | 244 | 260 | 265 | ASTM D-92 | |
Pour Point | °C | -6 | -6 | -6 | ASTM D-97 | |
Base Number | mg KOH/g | 30.0 | 30.0 | 30.0 | ASTM D-2896 | |
Sulphated Ash | wt % | 3.6 | 3.6 | 3.6 | ASTM D-874 | |
FZG Load carrying capacity, | - | 12 | 12 | 12 | - | |
failure stage | ||||||
Color | - | 8.0 | 8.0 | 8.0 | ASTM D-1500 | |
Product Code | - | 2630 | 2640 | 2650 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA POWER – 40 OIL Series is highly alkaline Trunk Piston Engine Oil for crankcase and cylinder lubrication requirement of cross-head type marine engines burning high Sulphur residual fuels (suitable up to 3.0 % Sulphur). They are combination of high quality base stocks and additives designed to impart acid neutralization, detergent, dispersant properties and oxidation stability. Petropower-3 oils can handle heavy residual fuels with high asphalt content.
APPLICATION:
ULTRALUBE ULTRA POWER – 40 OIL Series is primarily recommended for use in high-output trunk piston marine diesel engines operating on heavy residual fuels (sulfur up to 3.0 %). They are suitable for four-stroke high BMEP medium speed diesel engines. Meets the requirement of WARTSILA, MAN (B&W), KHD-DEUTZ, PIELSTICK, NIGATA, MAK, YANMAR, DAIHATSU, MIRLESS BLACKSTONE and COCKERILL engine builders.
BENEFITS:
.Excellent TBN retention, with low oil consumption
.Low cylinders wear rates.
.Cleaner piston, ports and cylinder, thus extending overhauls.
.Fast seperation from water in case of water contamination.
.Low under crown deposits
.Controls sludge formationthus increasing oil filter life and reduces cleaning frequencies.
Performance level:
API .................. CF,
MAN B&W, MITSUBISHI HEAVY INDUSTRIES (MHI), WARTSILA NSD, CATERPILLAR, DEUTZ, BLACKSTONE, RUSTON.
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | 30 | 40 | 50 | - | ||
Specific Gravity | @ 15°C | - | 0.913 | 0.916 | 0.919 | ASTM D-4052 |
Viscosity | @40 °C @ 100°C |
mm2/s mm2/s |
104.0 11.8 |
148.0 14.9 |
205.0 19.5 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 102 | 101 | 104 | ASTM D-2270 | |
Flash Point, COC | °C | 242 | 255 | 265 | ASTM D-92 | |
Pour Point | °C | -9 | -9 | -6 | ASTM D-97 | |
Base Number | mg KOH/g | 40.0 | 40.0 | 40.0 | ASTM D-2896 | |
Sulphated Ash | wt % | 4.6 | 4.6 | 4.6 | ASTM D-874 | |
FZG Load carrying capacity, | ||||||
failure stage | - | 12 | 12 | 12 | - | |
Color | - | 8.0 | 8.0 | D8.0 | ASTM D-1500 | |
Product Code | - | 2670 | 2680 | 2690 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA POWER – 55 OIL Series is highly alkaline Trunk Piston Engine Oil for crankcase and cylinder lubrication requirement of medium-speed high BMEP marine engines burning high sulphur residual fuels (3.0% - 5.0% sulphur). They are developed for ‘flame ring liners’ operating on high sulphur residual fuel in these engines. Petropower-4 shall take care of TBN depletion problems since in some engines it will be severe due to low oil consumption.
APPLICATION:
ULTRALUBE ULTRA POWER - 55 OIL Series is recommended as crankcase engine oil for medium speed high BMEP engines, operating on high sulfur fuels. Particularly suited for ‘flame ring liners’ fitted engines such as WARTSILA, MAN (B&W) latest models designed for low oil consumption , can also be used as ‘top up’ oil to increase TBN level in medium speed trunk piston engines.
BENEFITS:
.Excellent TBN retention with low oil consumption.
.Cleaner pistons, ports and cylinders, thus extending overhauls.
.Fast seperation from water in case of water contamination.
.Low under crown deposits
.Controls sludge formation, thus increase filter.
.life and reduces cleaning frequencies .
Performance level:
API .................. CF,
MAN B&W, MITSUBISHI HEAVY INDUSTRIES (MHI), WARTSILA NSD, CATERPILLAR, DEUTZ, BLACKSTONE, RUSTON.
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | 40 | 50 | - | |||
Specific Gravity | @ 15°C | - | 0.926 | 0.931 | ASTM D-4052 | |
Viscosity | @40 °C @ 100°C |
mm2/s mm2/s |
196.0 19.2 |
137.0 15.0 |
ASTM D-445 ASTM D-445 |
|
Viscosity Index | - | 111 | 111 | ASTM D-2270 | ||
Flash Point, COC | °C | 240 | 253 | ASTM D-92 | ||
Pour Point | °C | -6 | -6 | ASTM D-97 | ||
Base Number | mg KOH/g | 55 | 55 | ASTM D-2896 | ||
Sulphated Ash | wt % | 6.68 | 6.68 | ASTM D-874 | ||
FZG Load carrying capacity, | ||||||
failure stage | - | 12 | 12 | - | ||
Color | - | 8.0 | 8.0 | ASTM D-1500 | ||
Product Code | - | 2730 | 2720 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA SHIELD -15 Series is specially formulated trunk piston engine oil for medium speed marine and industrial type engines operating on distillate fuels (sulphur up to 1.0%). They are blended using solvent-refined high viscosity index paraffin mineral base oils and chemical additives which provide effective alkalinity, wear resistance, detergent/dispersant and efficient demulsibility characteristics.
APPLICATION:
ULTRALUBE ULTRA SHIELD -15 Series is recommended for crankcase lubrication in medium- speed marine type diesel engines. They can also be used for seperate bearing lubrication and piston cooling of large cross-head type engines under severe service conditions at appropriate viscosity grades.
BENEFITS:
.Reduced port and under crown deposits.
.Cleaner engine operation.
.Increased protection against cylinder and bearing wear.
Performance level:
API .................. CF,
MAN B&W, MITSUBISHI HEAVY INDUSTRIES (MHI), WARTSILA NSD, CATERPILLAR, DEUTZ, BLACKSTONE, RUSTON.
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | 30 | 40 | 50 | - | ||
Specific Gravity | @ 15°C | - | 0.902 | 0.905 | 0.909 | ASTM D-4052 |
Viscosity | @40 °C @ 100°C |
mm2/s mm2/s |
105.0 11.8 |
145.0 15.0 |
233.0 19.8 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 100 | 104 | 97 | ASTM D-2270 | |
Flash Point, COC | °C | 262 | 266 | 272 | ASTM D-92 | |
Pour Point | °C | -9 | -6 | -6 | ASTM D-97 | |
Base Number | mg KOH/g | 15 | 15 | 15 | ASTM D-2896 | |
Sulphated Ash | wt % | 1.6 | 1.6 | 1.6 | ASTM D-874 | |
Color | - | 4.0 | 4.5 | 5.0 | ASTM D-1500 | |
Product Code | - | 4130 | 4140 | 4150 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA SHIELD -30 OIL Series is trunk piston engine oil formulated for crankcase lubrication requirements of high-output trunk-piston diesel engines and other similar marine type applications. They are formulated from solvent-refined paraffin thermally stable base oils, combined with an effective additive package providing enhanced load-carrying ability, efficient oxidation stability and effective dispersancy/detergency. They provide effective acid neutralization and alkalinity retention in service, even where High-Sulphur fuels are used.
APPLICATION:
ULTRALUBE ULTRA SHIELD -30 OIL Series is primarily recommended for use in high-output trunkpiston marine diesel engines operating on medium residual fuels (Sulphur upto 2.0%). They are suitable for four-stroke cycle engines.
BENEFITS:
.Neutralize combustion acids.
.Maintain alkalinity in service.
.Good demulsibility.
.Control ring and liner wear.
Performance level:
API .................. CF,
MAN B&W, MITSUBISHI HEAVY INDUSTRIES (MHI), WARTSILA NSD, CATERPILLAR, DEUTZ, BLACKSTONE, RUSTON.
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | 30 | 40 | 50 | - | ||
Specific Gravity | @ 15°C | - | 0.909 | 0.913 | 0.918 | ASTM D-4052 |
Viscosity | @40 °C @ 100°C |
mm2/s mm2/s |
103.5 11.9 |
145.0 15.0 |
224.0 19.7 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 104 | 104 | 100 | ASTM D-2270 | |
Flash Point, COC | °C | 246 | 260 | 276 | ASTM D-92 | |
Pour Point | °C | -9 | -6 | -6 | ASTM D-97 | |
Base Number | mg KOH/g | 30 | 30 | 30 | ASTM D-2896 | |
Sulphated Ash | wt % | 3.6 | 3.6 | 3.6 | ASTM D-874 | |
Color | - | 4.0 | 4.5 | 5.0 | ASTM D-1500 | |
Product Code | - | 4230 | 4240 | 4290 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA SHIELD -40 Series is highly alkaline trunk piston engine oil for crankcase and cylinder lubrication requirement of trunk-piston and cross-head type marine engines burning high sulphur residual fuels (over 3.0% sulphur). They are a combination of high quality base stocks and additives designed to impart acid neutralization, detergent and dispersant properties and oxidation stability.
APPLICATION:
ULTRALUBE ULTRA SHIELD -40 Series is recommended for use as cylinder oils in marine or stationary medium speed diesel engines under a wide variety of operating conditions. They are suitable for use in both cross-head and trunk-piston type engines.
BENEFITS:
.Low cylinders wear rates.
.Cleaner pistons, ports and cylinders.
.Suitable for both trunk piston and cross-head engines.
.Fast separation from water in case of contamination.
Performance level:
API .................. CF,
MAN B&W, MITSUBISHI HEAVY INDUSTRIES (MHI), WARTSILA NSD, CATERPILLAR, DEUTZ, BLACKSTONE, RUSTON.
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | 30 | 40 | 50 | - | ||
Specific Gravity | @ 15°C | - | 0.915 | 0.919 | 0.924 | ASTM D-4052 |
Viscosity | @40 °C @ 100°C |
mm2/s mm2/s |
102.0 11.9 |
148.0 15.0 |
228.0 19.9 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 102 | 101 | 100 | ASTM D-2270 | |
Flash Point, COC | °C | 242 | 258 | 268 | ASTM D-92 | |
Pour Point | °C | -9 | -6 | -6 | ASTM D-97 | |
Base Number | mg KOH/g | 40 | 40 | 40 | ASTM D-2896 | |
Sulphated Ash | wt % | 4.0 | 4.0 | 4.0 | ASTM D-874 | |
Color | - | 5.0 | 5.5 | 5.53 | ASTM D-1500 | |
Product Code | - | 4330 | 4340 | 4350 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA SHIELD LSF Series is specially formulated oil for medium speed marine and industrial type engines operating on distillate fuels (sulphur up to 0.5%). They are blended using solvent-refined high viscosity index paraffin mineral base oils and chemical additives which provide effective alkalinity, wear resistance, detergent/dispersant and efficient demulsibility characteristics.
APPLICATION:
ULTRALUBE ULTRA SHIELD LSF Series is recommended for crankcase lubrication in medium- speed marine type diesel engines. They can also be used for seperate bearing lubrication and piston cooling of large cross-head type engines under severe service conditions at appropriate viscosity grades. .
BENEFITS:
.Reduced port and under crown deposits.
.Clenar engine operation.
.Increased protection against cylinder and bearing wear.
Performance level:
API .................. CF,
MAN B&W, MITSUBISHI HEAVY INDUSTRIES (MHI), WARTSILA NSD, CATERPILLAR, DEUTZ, BLACKSTONE, RUSTON.
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | 30 | 40 | 50 | - | ||
Specific Gravity | @ 15°C | - | 0.915 | 0.919 | 0.924 | ASTM D-4052 |
Viscosity | @40 °C @ 100°C |
mm2/s mm2/s |
104.0 11.9 |
148.0 15.0 |
228.0 19.9 |
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 102 | 101 | 100 | ASTM D-2270 | |
Flash Point, COC | °C | 242 | 258 | 268 | ASTM D-92 | |
Pour Point | °C | -9 | -6 | -6 | ASTM D-97 | |
Base Number | mg KOH/g | 40 | 40 | 40 | ASTM D-2896 | |
Sulphated Ash | wt % | 4.0 | 4.0 | 4.0 | ASTM D-874 | |
Color | - | 5.0 | 5.0 | 5.5 | ASTM D-1500 | |
Product Code | - | 4330 | 4340 | 4350 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRA SHIELD SPECIAL is high quality marine system oil, formulated from solvent- refined paraffin base oils having high thermal stability and resistance to oxidation. These inherent base oil characteristics are augmented by a balanced additive package containing oxidation inhibitors, alkaline detergents, dispersants and antifoam agents. They have been developed specifically for use as system oils in modern high-output cross-head type marine diesel engines. They provide adequate lubrication for bearings and other moving parts, including cams and gears,plus effective cooling of pistons in cross-head engines even in the presence of saline water.
APPLICATION:
ULTRALUBE ULTRA SHIELD SPECIAL are recommended primarily for use in high out-put cross-head diesel engines in marine service, particularly those requiring system oil for piston cooling. In these applications, they will prevent or reduce deposit formation in piston cooling spaces, maintain piston- cooling efficiency and reduce the incidence of piston crown cracking. Also it is recommended as crankcase oil in auxiliary engines..
BENEFITS:
.Reduce deposits on piston and crankcase surfaces.
.Enhance piston-cooling efficiency.
.Increase protection against bearing corrosion.
.Provide improved rust protection.
.Provide effective water tolerance and separation.
Performance level:
Approved by major marine , engine manufacturers , MAN B&W , MITSUBISHI HEAVY , INDUSTRIES (MHI) , WARTSILA NSD .
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
SAE Grade | 30 | 40 | - | |||
Specific Gravity | @ 15°C | - | 0.896 | 0.899 | ASTM D-4052 | |
Viscosity | @40 °C @ 100°C |
mm2/s mm2/s |
108.0 11.8 |
153.0 15.0 |
|
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 98 | 98 | ASTM D-2270 | ||
Flash Point, COC | °C | 262 | 270 | ASTM D-92 | ||
Pour Point | °C | 6 | 9 | ASTM D-97 | ||
Base Number | mg KOH/g | 5.2 | 5.2 | ASTM D-2896 | ||
Sulphated Ash | wt % | 0.73 | 0.73 | ASTM D-874 | ||
Product Code | - | 4100 | 4110 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
DESCRIPTION:
ULTRALUBE ULTRACYL – 70 Series is superior, high-alkaline, cross-head engine oils, developed specifically for lubrication of modern, high output cross-head type engines using high sulphur fuels exceeding 4% by weight. are formulated from high-quality base stocks with selected additives to provide optimum oxidation resistance at high temperatures. They also provide high levels of detergency, alkalinity and load-carrying ability to meet the performance requirements of modern cross-head type slow speed two stroke marine diesel engines
APPLICATION:
ULTRALUBE ULTRACYL – 70 Series is recommended as a cylinder lubricant for all types of slow speed cross-head two stroke diesel engines using high sulphur fuels particularly the long stroke, BMEP types.
BENEFITS:
.Reduced engine wear rates.
.Good demulsibility properties.
.Reduced maintenance costs.
Performance level:
Approved by major marine , engine manufacturers , MAN B&W MITSUBISHI HEAVY , INDUSTRIES (MHI) , WARTSILA NSD.
Product characteristics:
PROPERTIES | Units | Value | TEST Method | |||
Series | - | 70 | 85 | - | ||
SAE Grade | 50 | 50 | - | |||
Specific Gravity | @ 15°C | - | 0.937 | 0.945 | ASTM D-4052 | |
Viscosity | @40 °C @ 100°C |
mm2/s mm2/s |
208.0 20.1 |
207.0 19.78 |
|
ASTM D-445 ASTM D-445 |
Viscosity Index | - | 112 | 110 | ASTM D-2270 | ||
Flash Point, COC | °C | 252 | 242 | ASTM D-92 | ||
Pour Point | °C | -6 | -6 | ASTM D-97 | ||
Base Number | mg KOH/g | 70.0 | 85.0 | ASTM D-2896 | ||
Sulphated Ash | wt % | 7.75 | 8.8 | ASTM D-874 | ||
Color | - | D8.0 | D8.0 | ASTM D-1500 | ||
Product Code | - | 4750 | 4780 | - |
The information and figures given here are typical of current production and conform to specifications, minor variations may occur.
